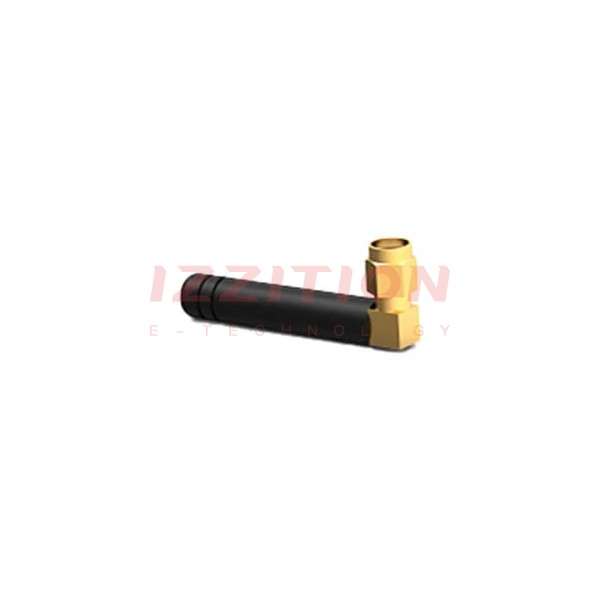

| Part Number | 2195632-1 | 2195630-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| RF Family/Standard | Cellular | WiFi |
| Frequency Group | Wide Band | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 900MHz, 1.8GHz | 2.45GHz, 5.5GHz |
| Frequency Range | 860MHz ~ 960MHz, 1.71GHz ~ 2.3GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz |
| Antenna Type | Whip, Right Angle | Whip, Tilt |
| Number of Bands | 2 | 2 |
| VSWR | 2.5 | 2 |
| Return Loss | - | -10dB |
| Gain | 2dBi | 2dBi |
| Power - Max | - | - |
| Features | - | - |
| Termination | SMA | - |
| Ingress Protection | - | - |
| Mounting Type | Connector Mount | Connector Mount |
| Height (Max) | 1.850" (47.00mm) | 4.252" (108.00mm) |
| Applications | GSM | Wi-Fi |
