Please send RFQ , we will respond immediately.

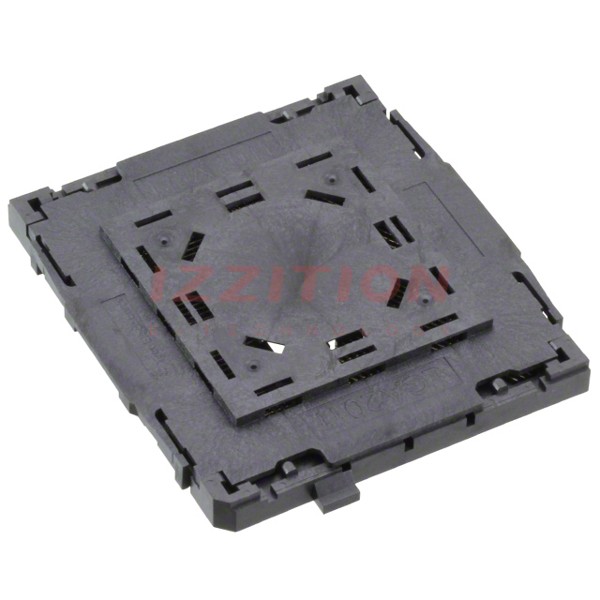

| Part Number | 2174988-2 | 2174988-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Last Time Buy | Last Time Buy |
| Type | LGA | LGA |
| Number of Positions or Pins (Grid) | 2011 (47 x 58) | 2011 (47 x 58) |
| Pitch - Mating | 0.040" (1.02mm) | 0.040" (1.02mm) |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 15.0µin (0.38µm) |
| Contact Material - Mating | Copper Alloy | Copper Alloy |
| Mounting Type | Surface Mount | Surface Mount |
| Features | Open Frame | Closed Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.035" (0.90mm) | 0.035" (0.90mm) |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | 15.0µin (0.38µm) |
| Contact Material - Post | Copper Alloy | Copper Alloy |
| Housing Material | Thermoplastic | Thermoplastic |
| Operating Temperature | - | - |
