Please send RFQ , we will respond immediately.

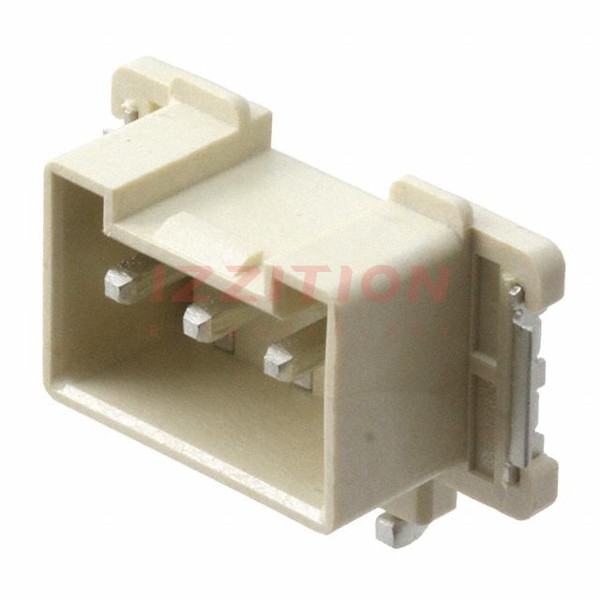

| Part Number | 2154829-2 | 2154829-3 | 2154829-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Connector Type | Header, Male Pins | Header, Male Pins | Header, Male Pins |
| Number of Positions | 3 | 4 | 2 |
| Mounting Type | Surface Mount, Bottom Entry, Through Board | Surface Mount, Bottom Entry, Through Board | Surface Mount, Bottom Entry, Through Board |
| Termination | Solder | Solder | Solder |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Fastening Type | - | - | - |
| Features | Board Lock | Board Lock | Board Lock |
| Housing Color | Natural | Natural | Natural |
| Wire Gauge | - | - | - |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C |
