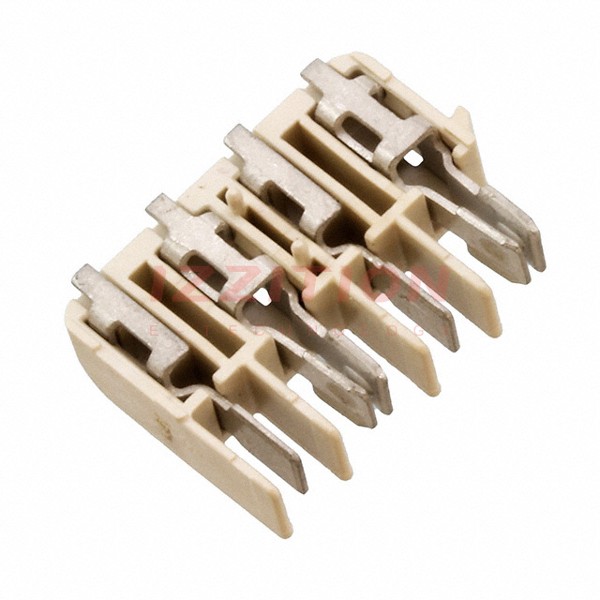

| Part Number | 2154640-2 | 2154640-3 | 2154640-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Style | Board to Board | Board to Board | Board to Board |
| Connector Type | Blade and Receptacle, Hermaphroditic | Blade and Receptacle, Hermaphroditic | Blade and Receptacle, Hermaphroditic |
| Number of Positions | 4 | 6 | 2 |
| Mounting Type | Board Edge, Surface Mount, Right Angle | Board Edge, Surface Mount, Right Angle | Board Edge, Surface Mount, Right Angle |
| Termination | Solder | Solder | Solder |
| Pitch | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp |
| Features | - | - | - |
| Housing Color | Natural | Natural | Natural |
| Wire Gauge | - | - | - |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
