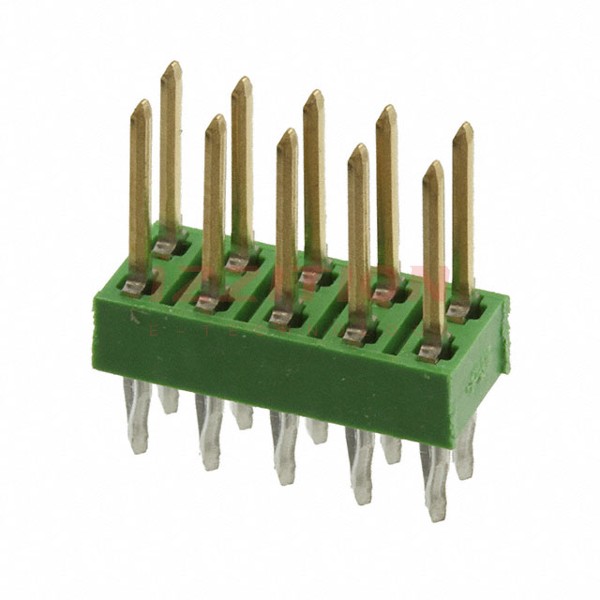

TE Connectivity AMP Connectors 215447-5

Manufacturer No:
215447-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
215447-5 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 10POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.264" (6.70mm)
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:0.535" (13.59mm)
Insulation Height:0.114" (2.90mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyester, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Green
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$2.26
140

Please send RFQ , we will respond immediately.
