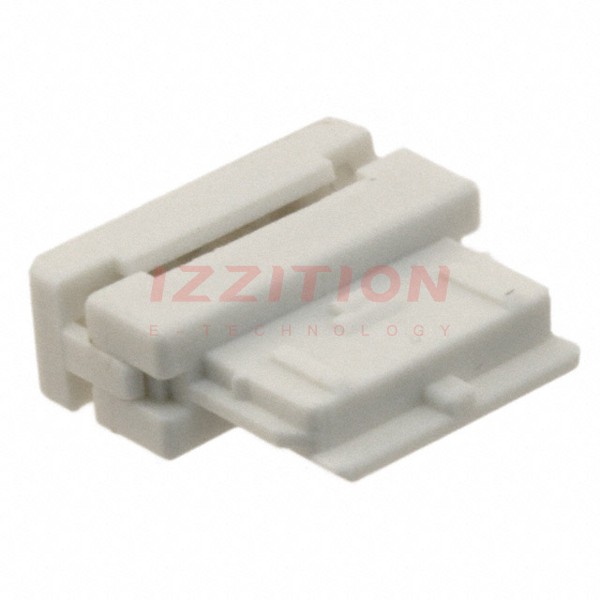

| Part Number | 2154150-3 | 2154150-4 | 2154150-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Connector Type | Plug | Plug | Plug |
| Number of Positions | 4 | 4 | 4 |
| Mounting Type | Free Hanging (In-Line), Right Angle - End, Down | Free Hanging (In-Line), Right Angle - End, Down | Free Hanging (In-Line), Right Angle - End, Down |
| Termination | IDC | IDC | IDC |
| Pitch | - | - | - |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock |
| Features | - | - | - |
| Housing Color | Natural, Red Stripe | Natural, Green Stripe | Natural, Orange Stripe |
| Wire Gauge | 24 AWG | 24 AWG | 24 AWG |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C |
