Please send RFQ , we will respond immediately.

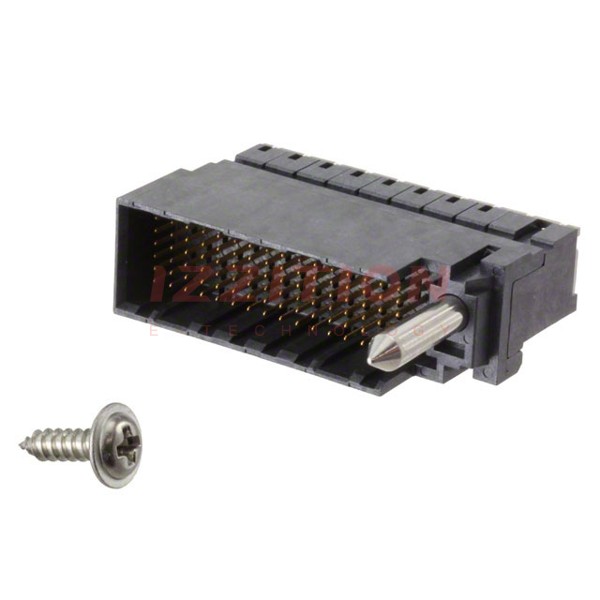

| Part Number | 2143316-3 | 2143016-3 | 2143310-3 | 2143311-3 | 2143312-3 | 2143313-3 | 2143314-3 | 2143315-3 | 2143316-2 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | - | - | - | - | - | - | - | - | - |
| Connector Type | Receptacle, Female Sockets | Header, Male Pins | Plug, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets |
| Connector Style | Impact, Guide Right | Impact, Guide Left | Impact | Impact | Impact | Impact, Guide Left | Impact, Guide Left | Impact, Guide Right | Impact, Guide Right |
| Number of Positions | 96 | 60 | 96 | 96 | 96 | 96 | 96 | 96 | 96 |
| Number of Positions Loaded | All | All | All | All | All | All | - | All | All |
| Pitch | - | 0.075" (1.91mm) | - | - | - | - | - | - | - |
| Number of Rows | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Number of Columns | 16 | 10 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black | Black | Black | Black | Black | Black |
