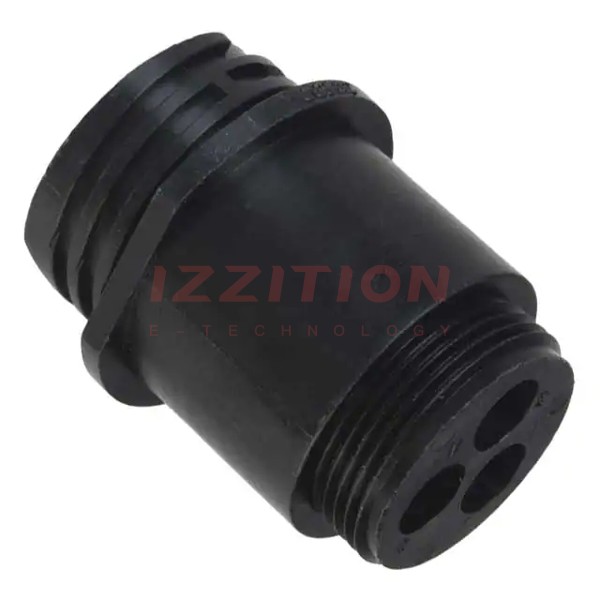

| Part Number | 213890-1 | 213893-1 | 213894-1 | 213890-2 | 213850-1 | 213860-1 | 213870-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Receptacle Housing |
| Type | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Male Pins | For Male Pins | For Male Pins |
| Number of Positions | 3 (Power) | 10 (8 + 2 Power) | 10 (8 + 2 Power) | 3 (Power) | 37 | 37 | 19 |
| Shell Size - Insert | 17-3 | 17-10 | 17-10 | 17-3 | 23-37 | 23-37 | 23-19 |
| Shell Size, MIL | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 8 Power | 16 (8), 8 Power (2) | 16 (8), 8 Power (2) | 8 Power | 16 | 16 | 16 |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Mounting Feature | - | Flange | - | - | - | Flange | Flange |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | B | B | B |
| Primary Material | - | - | - | - | - | - | - |
| Shell Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Shell Finish | - | - | - | - | - | - | - |
| Housing Color | Black | Black | Black | Black | Black | Black | Black |
| Ingress Protection | - | - | - | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | Coupling Nut | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
