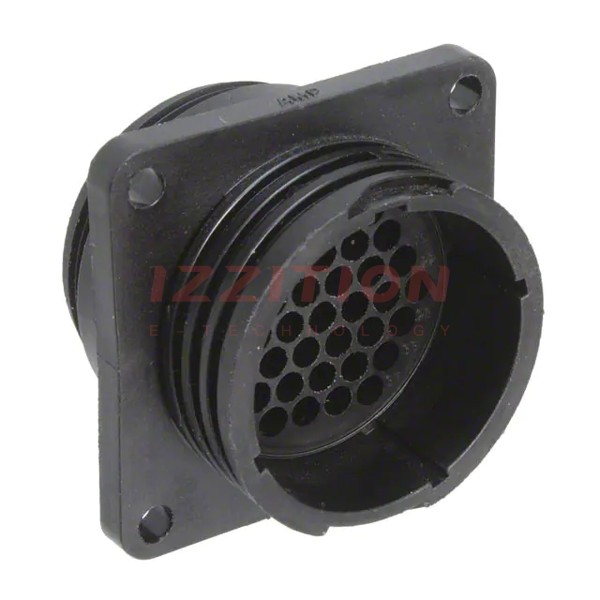

| Part Number | 213860-1 | 213864-1 | 213866-1 | 213868-1 | 213870-1 | 213890-1 | 213862-1 | 213850-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Plug Housing |
| Type | For Male Pins | For Female Sockets | For Male Pins | For Female Sockets | For Male Pins | For Female Sockets | For Male Pins | For Male Pins |
| Number of Positions | 37 | 37 | 24 | 19 | 19 | 3 (Power) | 16 | 37 |
| Shell Size - Insert | 23-37 | 23-37 | 23-24 | 23-19 | 23-19 | 17-3 | 17-16 | 23-37 |
| Shell Size, MIL | - | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 16 | 16 | 16 | 16 | 16 | 8 Power | 16 | 16 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | Flange | Flange | Flange | Flange | - | Flange | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | B | B | B | B | B | Keyed | B | B |
| Primary Material | - | - | - | - | - | - | - | - |
| Shell Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon, Glass Reinforced | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Finish | - | - | - | - | - | - | - | - |
| Housing Color | Black | Black | Black | Black | Black | Black | Black | Black |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | - | - | - | Coupling Nut |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
