Please send RFQ , we will respond immediately.

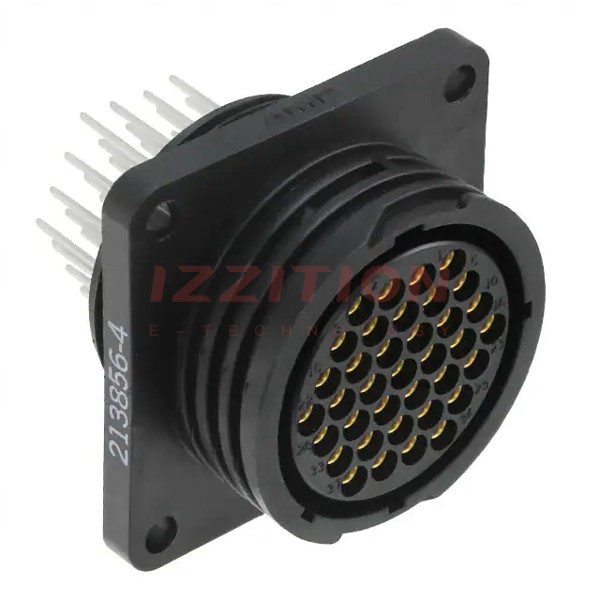

| Part Number | 213856-4 | 213854-4 | 213855-4 | 213856-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 37 | 37 | 16 | 37 |
| Shell Size - Insert | 23-37 | 23-37 | 17-16 | 23-37 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole |
| Mounting Feature | Flange | Flange | Flange | Flange |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Orientation | B | B | B | B |
| Primary Material | Plastic | Plastic | Plastic | Plastic |
| Shell Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Shell Finish | - | - | - | - |
| Contact Finish - Mating | Gold | Gold | Gold | Gold |
| Color | - | - | - | Black |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - |
| Shielding | - | - | - | Unshielded |
| Current Rating (Amps) | - | - | - | - |
| Voltage Rating | 250VAC/DC | 250VAC/DC | 250VAC/DC | 250VAC/DC |
| Cable Opening | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
