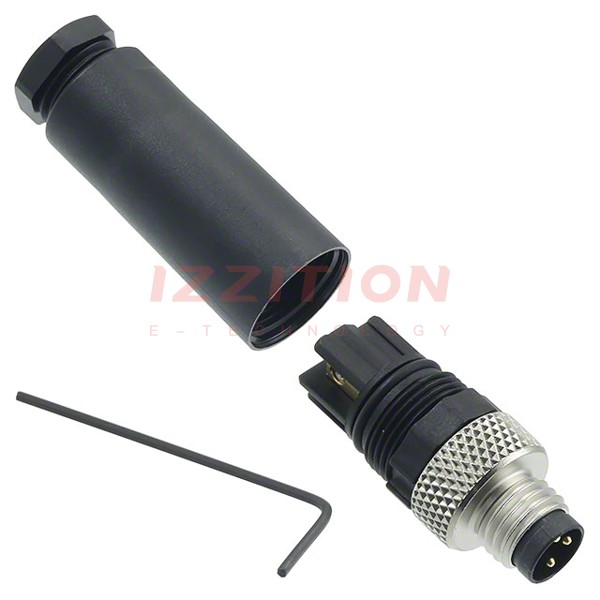

| Part Number | 2120954-1 | 2120950-1 | 2120952-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete |
| Connector Type | Plug, Male Pins | Plug, Female Sockets | Plug, Male Pins |
| Number of Positions | 3 | 4 (Power) | 8 |
| Shell Size - Insert | M8-3 | M12-4 | M12-8 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Termination | Screw | - | IDC |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | - | S | X |
| Primary Material | Metal | Plastic | Metal |
| Shell Material | Zinc Die Cast | Polyamide (PA), Nylon | Zinc Die Cast |
| Shell Finish | Nickel | - | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Black, Silver | - | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - |
| Features | Backshell | Backshell, Coupling Nut | - |
| Shielding | - | Unshielded | - |
| Current Rating (Amps) | 4A | 12A | 0.5A |
| Voltage Rating | 60VAC/DC | 630V | 50VAC, 60VDC |
| Cable Opening | - | 0.315" ~ 0.394" (8.00mm ~ 10.00mm) | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
