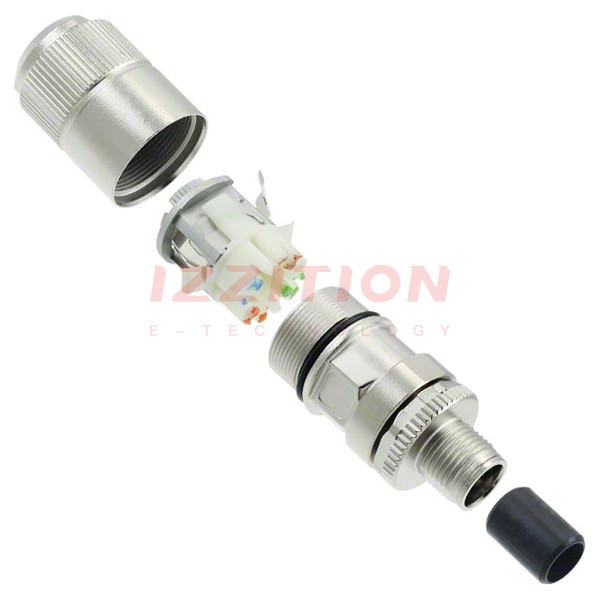

| Part Number | 2120952-1 | 2120954-1 | 2120950-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Active |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Plug, Female Sockets |
| Number of Positions | 8 | 3 | 4 (Power) |
| Shell Size - Insert | M12-8 | M8-3 | M12-4 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Termination | IDC | Screw | - |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | X | - | S |
| Primary Material | Metal | Metal | Plastic |
| Shell Material | Zinc Die Cast | Zinc Die Cast | Polyamide (PA), Nylon |
| Shell Finish | Nickel | Nickel | - |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Silver | Black, Silver | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - |
| Features | - | Backshell | Backshell, Coupling Nut |
| Shielding | - | - | Unshielded |
| Current Rating (Amps) | 0.5A | 4A | 12A |
| Voltage Rating | 50VAC, 60VDC | 60VAC/DC | 630V |
| Cable Opening | - | - | 0.315" ~ 0.394" (8.00mm ~ 10.00mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
