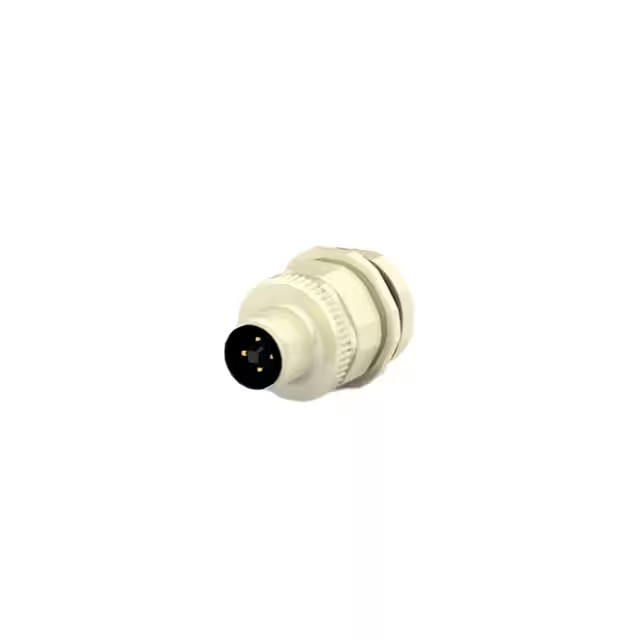

| Part Number | 2120947-1 | 2120948-1 | 2120949-1 | 212047-1 | 2120946-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Discontinued at Digi-Key |
| Connector Type | Receptacle, Male Pins | Plug, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets | Plug, Female Sockets |
| Number of Positions | 4 (Power) | 4 (Power) | 4 (Power) | 8 | 4 (Power) |
| Shell Size - Insert | M12-4 | M12-4 | M12-4 | DIN (270 Degree) | M12-4 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole, Right Angle | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | - | - | - | Bulkhead - Rear Side Nut |
| Termination | - | - | Solder | Solder | - |
| Fastening Type | Threaded | Threaded | Threaded | Push-Pull | Threaded |
| Orientation | T | T | T | - | T |
| Primary Material | Metal | Plastic | Plastic | Plastic | Metal |
| Shell Material | Zinc Die Cast | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Zinc Die Cast |
| Shell Finish | Nickel | - | - | - | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Tin | Gold |
| Color | Silver | - | - | - | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | - | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | UL94 V-0 | - |
| Features | - | Backshell, Coupling Nut | - | - | Coupling Nut |
| Shielding | Unshielded | Unshielded | Shielded | Shielded | Unshielded |
| Current Rating (Amps) | 12A | 12A | 12A | 7.5A | 12A |
| Voltage Rating | 60VAC/DC | 60V | 60V | 250VAC | 60VAC/DC |
| Cable Opening | - | 0.315" ~ 0.394" (8.00mm ~ 10.00mm) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 105°C | -40°C ~ 85°C |
