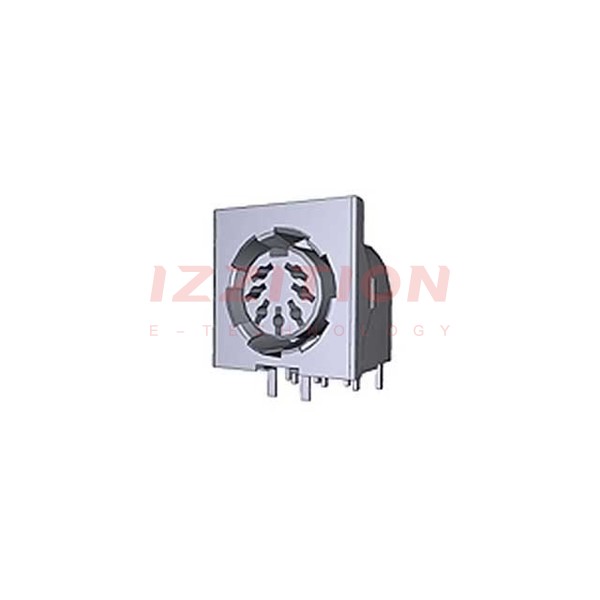

| Part Number | 212046-1 | 2120946-1 | 212047-1 | 212044-1 | 212045-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Discontinued at Digi-Key | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle, Female Sockets | Plug, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 7 | 4 (Power) | 8 | 5 | 6 |
| Shell Size - Insert | DIN (270 Degree) | M12-4 | DIN (270 Degree) | DIN (180 Degree) | DIN (240 Degree) |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Through Hole, Right Angle | Panel Mount | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Mounting Feature | - | Bulkhead - Rear Side Nut | - | - | - |
| Termination | Solder | - | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Threaded | Push-Pull | Push-Pull | Push-Pull |
| Orientation | - | T | - | - | - |
| Primary Material | Plastic | Metal | Plastic | Plastic | Plastic |
| Shell Material | Polyamide (PA), Nylon | Zinc Die Cast | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Shell Finish | - | Nickel | - | - | - |
| Contact Finish - Mating | Tin | Gold | Tin | Tin | Tin |
| Color | - | Silver | - | - | - |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof | - | - | - |
| Material Flammability Rating | UL94 V-0 | - | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | Coupling Nut | - | - | - |
| Shielding | Shielded | Unshielded | Shielded | Shielded | Shielded |
| Current Rating (Amps) | 7.5A | 12A | 7.5A | 7.5A | 7.5A |
| Voltage Rating | 250VAC | 60VAC/DC | 250VAC | 250VAC | 250VAC |
| Cable Opening | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -40°C ~ 85°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
