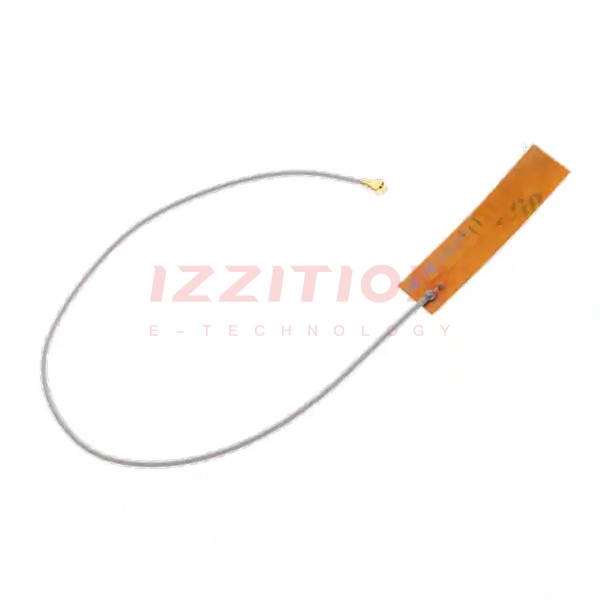

| Part Number | 2118898-2 | 2118898-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 915MHz, 2.44GHz | 915MHz, 2.44GHz |
| Frequency Range | 902MHz ~ 928MHz, 2.4GHz ~ 2.4835GHz | 902MHz ~ 928MHz, 2.4GHz ~ 2.4835GHz |
| Antenna Type | PCB Trace | PCB Trace |
| Number of Bands | 2 | 2 |
| VSWR | 2 | 2 |
| Return Loss | - | - |
| Gain | 1dBi, 4dBi | 1dBi, 4dBi |
| Power - Max | - | - |
| Features | Cable - 255mm | Cable - 185mm |
| Termination | MMCX | MMCX |
| Ingress Protection | - | - |
| Mounting Type | Adhesive | Adhesive |
| Height (Max) | 0.012" (0.30mm) | 0.012" (0.30mm) |
| Applications | Bluetooth, Wi-Fi, Zigbee™ | Bluetooth, Wi-Fi, Zigbee™ |
