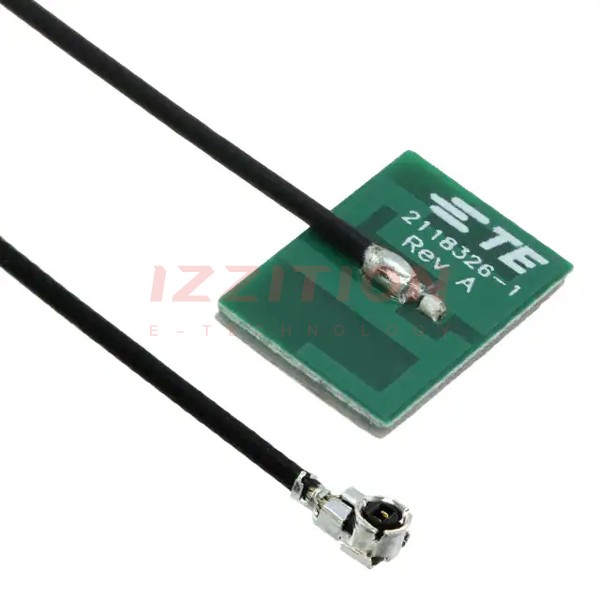

| Part Number | 2118326-1 | 2118316-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| RF Family/Standard | WiFi | WiFi |
| Frequency Group | SHF (f > 4GHz) | SHF (f > 4GHz) |
| Frequency (Center/Band) | 5GHz | 5GHz |
| Frequency Range | 4.9GHz ~ 5.875GHz | - |
| Antenna Type | PCB Trace | Stamped Metal |
| Number of Bands | 1 | 1 |
| VSWR | 2.5 | - |
| Return Loss | - | - |
| Gain | 2.4dBi | - |
| Power - Max | 3 W | - |
| Features | Cable - 120mm | - |
| Termination | U.FL (UMCC), IPEX MHF1 | Solder |
| Ingress Protection | - | - |
| Mounting Type | Adhesive | Surface Mount |
| Height (Max) | 0.039" (1.00mm) | 0.171" (4.35mm) |
| Applications | Wi-Fi, WLAN | WLAN |
