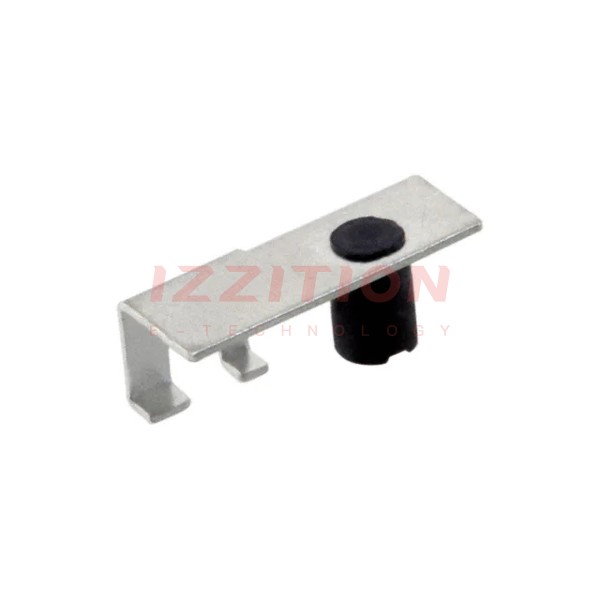

| Part Number | 2118316-1 | 2118326-1 | 2118016-1 | 2118310-1 | 2118315-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete |
| RF Family/Standard | WiFi | WiFi | 802.15.4, Bluetooth, WiFi | WiFi | WiFi |
| Frequency Group | SHF (f > 4GHz) | SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 5GHz | 5GHz | 2.4GHz, 5.5GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz |
| Frequency Range | - | 4.9GHz ~ 5.875GHz | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | - | - |
| Antenna Type | Stamped Metal | PCB Trace | PCB Trace | PCB Trace | Stamped Metal |
| Number of Bands | 1 | 1 | 2 | 2 | 2 |
| VSWR | - | 2.5 | 3 | - | - |
| Return Loss | - | - | - | - | - |
| Gain | - | 2.4dBi | 2dB | - | - |
| Power - Max | - | 3 W | - | - | - |
| Features | - | Cable - 120mm | - | - | - |
| Termination | Solder | U.FL (UMCC), IPEX MHF1 | Solder | Solder | Solder |
| Ingress Protection | - | - | - | - | - |
| Mounting Type | Surface Mount | Adhesive | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.171" (4.35mm) | 0.039" (1.00mm) | 0.031" (0.79mm) | 0.062" (1.57mm) | 0.169" (4.28mm) |
| Applications | WLAN | Wi-Fi, WLAN | Bluetooth, WLAN, Zigbee™ | WLAN | WLAN |
