Please send RFQ , we will respond immediately.

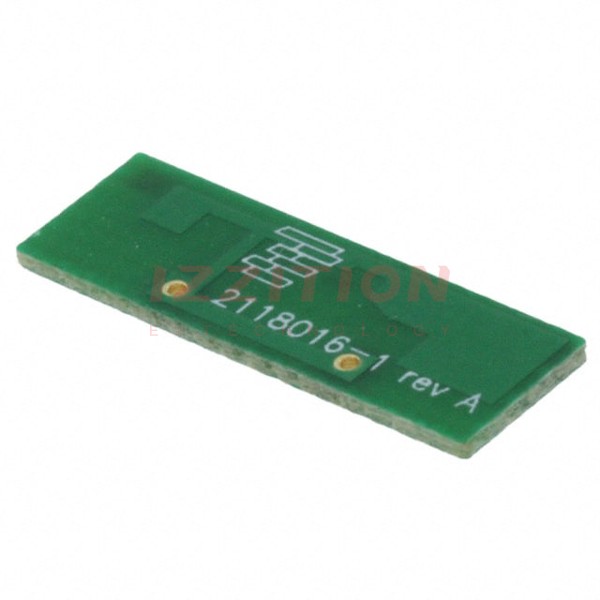

| Part Number | 2118016-1 | 2118316-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz | 5GHz |
| Frequency Range | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | - |
| Antenna Type | PCB Trace | Stamped Metal |
| Number of Bands | 2 | 1 |
| VSWR | 3 | - |
| Return Loss | - | - |
| Gain | 2dB | - |
| Power - Max | - | - |
| Features | - | - |
| Termination | Solder | Solder |
| Ingress Protection | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Height (Max) | 0.031" (0.79mm) | 0.171" (4.35mm) |
| Applications | Bluetooth, WLAN, Zigbee™ | WLAN |
