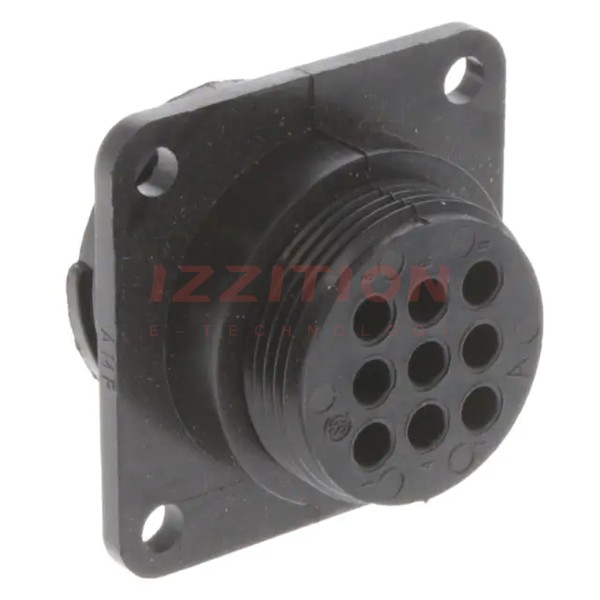

| Part Number | 211769-4 | 211769-5 | 211769-1 | 211769-2 | 211769-3 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing |
| Type | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets |
| Number of Positions | 9 | 9 | 9 | 9 | 9 |
| Shell Size - Insert | 17-9 | 17-9 | 17-9 | 17-9 | 17-9 |
| Shell Size, MIL | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 16 | 16 | 16 | 16 | 16 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | Flange | Flange | Flange | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | A | A | A | A | A |
| Primary Material | - | - | - | - | - |
| Shell Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Shell Finish | - | - | - | - | - |
| Housing Color | Black | Black | Black | Black | Black |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
