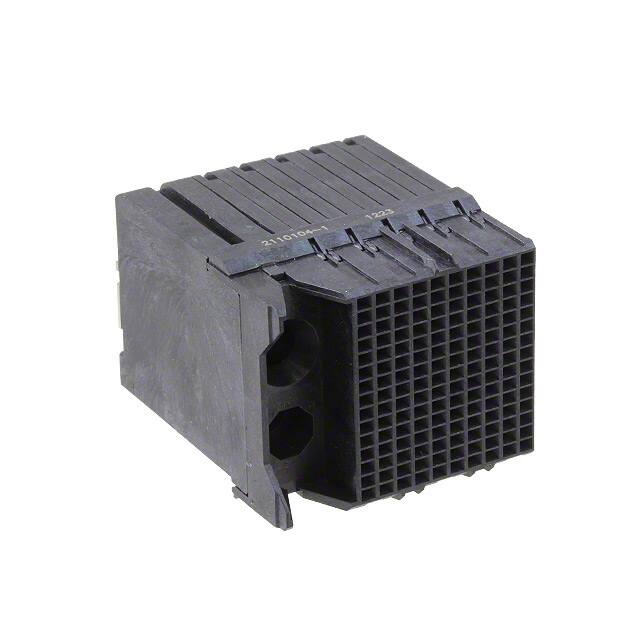

| Part Number | 2110104-1 | 2110106-1 | 2110105-1 | 2110124-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | Daughtercard | Daughtercard | - | - |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Style | Impact, Guide Left | Impact | Impact, Guide Right | Impact |
| Number of Positions | 150 | 150 | 150 | 240 |
| Number of Positions Loaded | All | All | All | - |
| Pitch | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) |
| Number of Rows | 15 | 15 | 15 | 15 |
| Number of Columns | 10 | 10 | 10 | 16 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - |
| Features | Board Guide | - | Board Guide | - |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black |
