Please send RFQ , we will respond immediately.

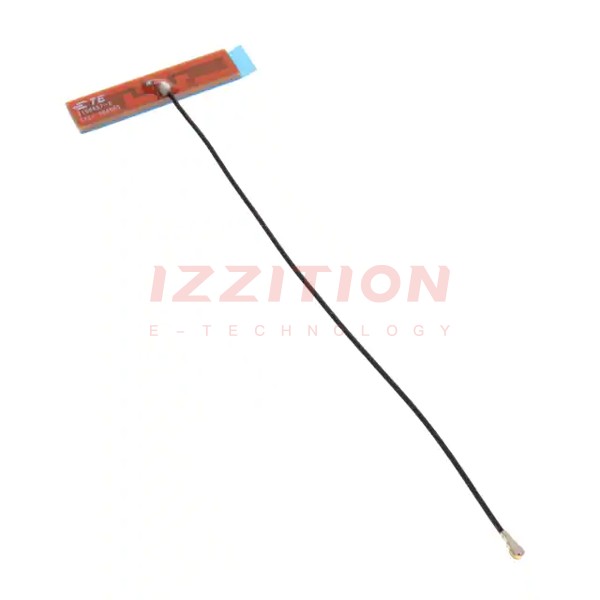

| Part Number | 2108857-6 | 2108857-8 | 2108857-1 | 2108857-2 | 2108857-4 | 2108857-5 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| RF Family/Standard | WiFi | WiFi | WiFi | WiFi | WiFi | WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.45GHz, 5.5125GHz, 6.525GHz | 2.45GHz, 5.5125GHz, 6.525GHz | 2.45GHz, 5.5125GHz, 6.525GHz | 2.45GHz, 5.5125GHz, 6.525GHz | 2.45GHz, 5.5125GHz, 6.525GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace |
| Number of Bands | 3 | 3 | 3 | 3 | 3 | 3 |
| VSWR | 2 | 2 | 2 | 2 | 2 | 2 |
| Return Loss | - | - | - | - | - | - |
| Gain | 4.3dBi | 4.3dBi | 4.3dBi | 4.3dBi | 4.3dBi | 4.3dBi |
| Power - Max | - | - | - | - | - | - |
| Features | Cable - 100mm | Cable - 200mm | Cable - 50mm | Cable - 100mm | Cable - 200mm | Cable - 50mm |
| Termination | MHF4 | MHF4 | MHF | MHF | MHF | MHF4 |
| Ingress Protection | - | - | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Adhesive | Adhesive | Adhesive | Adhesive |
| Height (Max) | 0.276" (7.01mm) | 0.276" (7.01mm) | 0.276" (7.01mm) | 0.276" (7.01mm) | 0.276" (7.01mm) | 0.276" (7.01mm) |
| Applications | Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi |
