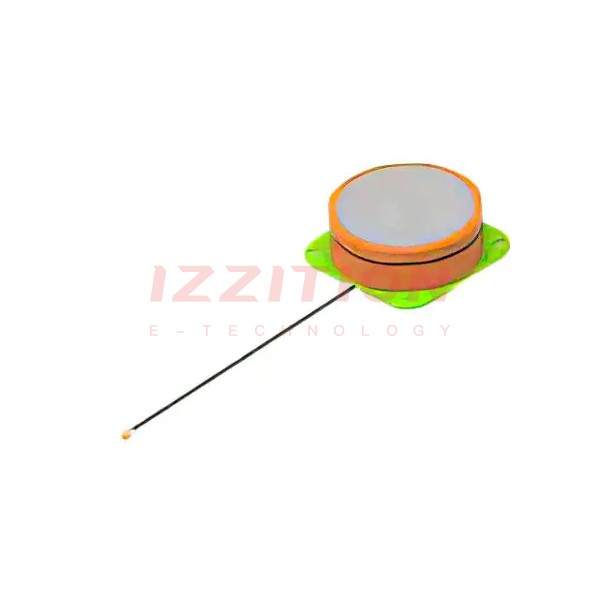

| Part Number | 2108854-1 | 2108857-1 | 2108855-1 | 2108824-1 | 2108844-1 | 2108851-1 | 2108852-1 | 2108853-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| RF Family/Standard | Navigation | WiFi | Navigation | Navigation | Navigation | WiFi | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | SHF (f > 4GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.225GHz, 1.5845GHz | 2.45GHz, 5.5125GHz, 6.525GHz | 1.209GHz, 1.5845GHz | 1.5845GHz | 1.5845GHz | 6.5GHz, 7.55GHz | 1.5845GHz | 1.225GHz, 1.5845GHz |
| Frequency Range | 1.194GHz ~ 1.255GHz, 1.559GHz ~ 1.61GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | 1.164GHz ~ 1.255GHz, 1.559GHz ~ 1.61GHz | 1.559GHz ~ 1.61GHz | 1.559GHz ~ 1.61GHz | 6GHz ~ 7GHz, 7GHz ~ 8.1GHz | 1.559GHz ~ 1.61GHz | 1.194GHz ~ 1.255GHz, 1.559GHz ~ 1.61GHz |
| Antenna Type | Flat Patch | PCB Trace | Flat Patch | Chip | Flat Patch | Chip | Flat Patch | Flat Patch |
| Number of Bands | 2 | 3 | 2 | 1 | 2 | 2 | 1 | 2 |
| VSWR | 1.2 | 2 | 1.3 | 1.7 | 1.3, 1.4 | 1.8 | 3.3 | 1.3 |
| Return Loss | - | - | - | - | - | - | - | - |
| Gain | 28.2dBic ~ 32.8dBic, 29.5dBic ~ 35.2dBic | 4.3dBi | 22.4dBic ~ 31.3dBic, 25.8dBic ~ 26.7dBic | 2.9dBi | 5.4dBic, 6dBic | 2.8dB, 5dBi | 34dBic | 23.2dBic ~ 32.7dBic, 30.7dBic ~ 33.5dBic |
| Power - Max | - | - | - | - | - | - | - | - |
| Features | LNA, Filter | Cable - 50mm | LNA, Filter | - | - | - | LNA, Filter | LNA, Filter |
| Termination | RP-SMA Male | MHF | RP-SMA Female | - | - | - | RP-SMA Male | RP-SMA Male |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Magnetic | Surface Mount | Adhesive | Surface Mount | Adhesive | Adhesive |
| Height (Max) | 0.709" (18.00mm) | 0.276" (7.01mm) | 0.886" (22.50mm) | 0.059" (1.50mm) | 0.512" (13.00mm) | 0.047" (1.20mm) | 0.413" (10.50mm) | 0.512" (13.00mm) |
| Applications | GNSS | Wi-Fi | GNSS | GNSS | GNSS | Wi-Fi | GNSS | GNSS |
