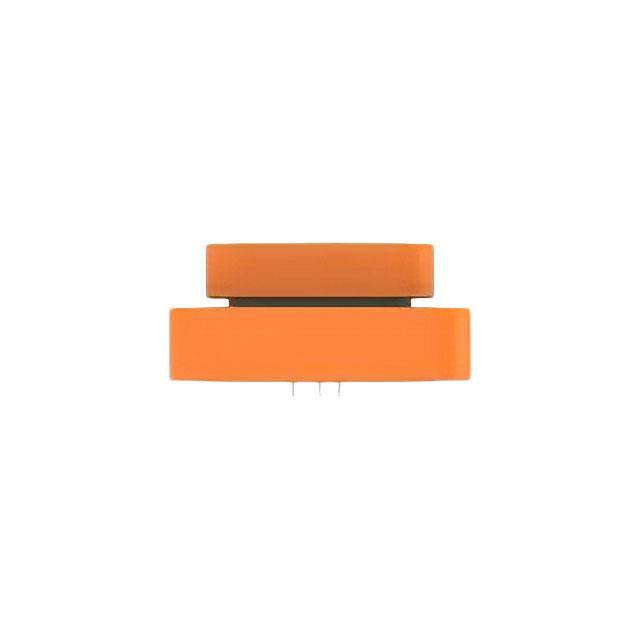

| Part Number | 2108848-1 | 2108838-1 | 2108840-1 | 2108844-1 | 2108847-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Navigation | 802.15.4, Bluetooth, WiFi | Navigation | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (2GHz ~ 3GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.233GHz, 1.5845GHz | 2.4GHz | 1.5845GHz | 1.5845GHz | 1.233GHz, 1.5845GHz |
| Frequency Range | 1.215GHz ~ 1.25GHz, 1.559GHz ~ 1.61GHz | 2.4GHz ~ 2.5GHz | 1.559GHz ~ 1.61GHz | 1.559GHz ~ 1.61GHz | 1.215GHz ~ 1.25GHz, 1.559GHz ~ 1.61GHz |
| Antenna Type | Flat Patch | Chip | Flat Patch | Flat Patch | Flat Patch |
| Number of Bands | 2 | 1 | 2 | 2 | 2 |
| VSWR | 1.2 | 2:1 | 1.3, 1.4 | 1.3, 1.4 | 1.4 |
| Return Loss | - | - | - | - | - |
| Gain | 4.2dBic, 6dBic | 2.4dBi | 5.1dBic, 5.6dBic | 5.4dBic, 6dBic | 3.9dBic, 2.7dBic |
| Power - Max | - | - | - | - | - |
| Features | - | - | - | - | - |
| Termination | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - |
| Mounting Type | Adhesive | Surface Mount | Adhesive | Adhesive | Adhesive |
| Height (Max) | 0.591" (15.00mm) | 0.047" (1.20mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.315" (8.00mm) |
| Applications | GNSS | Bluetooth, Wi-Fi, Zigbee™ | GNSS | GNSS | GNSS |
