Please send RFQ , we will respond immediately.

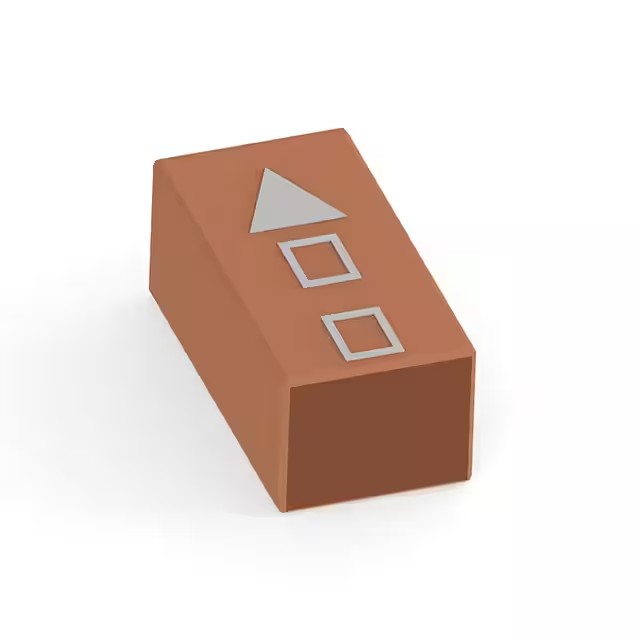

| Part Number | 2108832-1 | 2108852-1 | 2108838-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | Navigation | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz) | UHF (1GHz ~ 2GHz) | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.4GHz | 1.5845GHz | 2.4GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz | 1.559GHz ~ 1.61GHz | 2.4GHz ~ 2.5GHz |
| Antenna Type | Chip | Flat Patch | Chip |
| Number of Bands | 1 | 1 | 1 |
| VSWR | 2.8 | 3.3 | 2:1 |
| Return Loss | - | - | - |
| Gain | 1.8dBi | 34dBic | 2.4dBi |
| Power - Max | - | - | - |
| Features | - | LNA, Filter | - |
| Termination | - | RP-SMA Male | - |
| Ingress Protection | - | - | - |
| Mounting Type | Surface Mount | Adhesive | Surface Mount |
| Height (Max) | 0.047" (1.20mm) | 0.413" (10.50mm) | 0.047" (1.20mm) |
| Applications | Bluetooth, Wi-Fi, Zigbee™ | GNSS | Bluetooth, Wi-Fi, Zigbee™ |
