Please send RFQ , we will respond immediately.

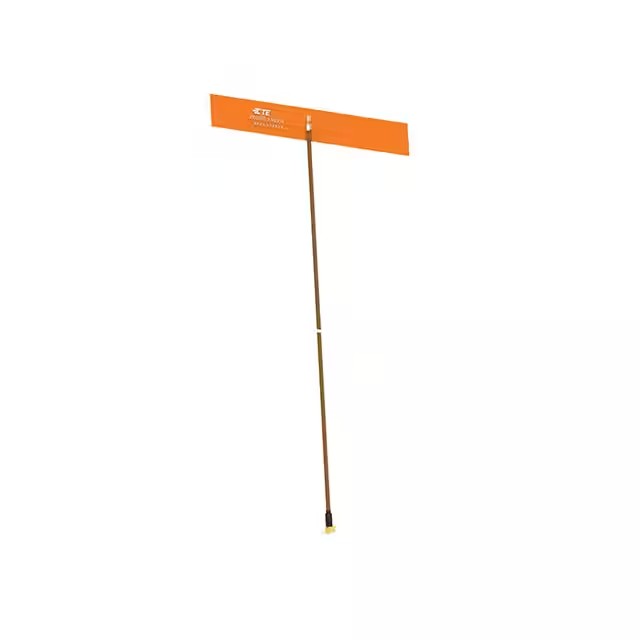

| Part Number | 2108793-1 | 2108793-2 | 2108783-1 | 2108792-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi | 802.15.4, Bluetooth, General ISM, WiFi | Cellular | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | Wide Band | Wide Band |
| Frequency (Center/Band) | 915MHz, 2.44GHz | 915MHz, 2.44GHz | 780MHz, 1.515GHz, 2.2GHz, 3.55GHz | 2.44GHz, 5.3685GHz, 6.525GHz |
| Frequency Range | 902MHz ~ 928MHz, 2.4GHz ~ 2.4835GHz | 902MHz ~ 928MHz, 2.4GHz ~ 2.4835GHz | 698MHz ~ 862MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace | PCB Trace |
| Number of Bands | 2 | 2 | 4 | 3 |
| VSWR | 2 | 2 | 2 | 2, 2.5 |
| Return Loss | - | - | - | - |
| Gain | 2dBi, 2.1dBi | 2dBi, 2.1dBi | 4.9dBi, 2dBi, 2.5dBi, 3.2dBi | 2.7dBi, 3.3dBi, 3.5dBi |
| Power - Max | - | - | - | - |
| Features | Cable - 185mm | Cable - 255mm | - | Cable - 120mm |
| Termination | MMCX | MMCX | Solder | MHF |
| Ingress Protection | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Surface Mount | Adhesive |
| Height (Max) | 0.012" (0.30mm) | 0.012" (0.30mm) | 0.125" (3.18mm) | 0.004" (0.10mm) |
| Applications | Bluetooth, ISM, Wi-Fi, Zigbee™ | Bluetooth, ISM, Wi-Fi, Zigbee™ | CDMA, GSM, LTE | Bluetooth, Wi-Fi, Zigbee™ |
