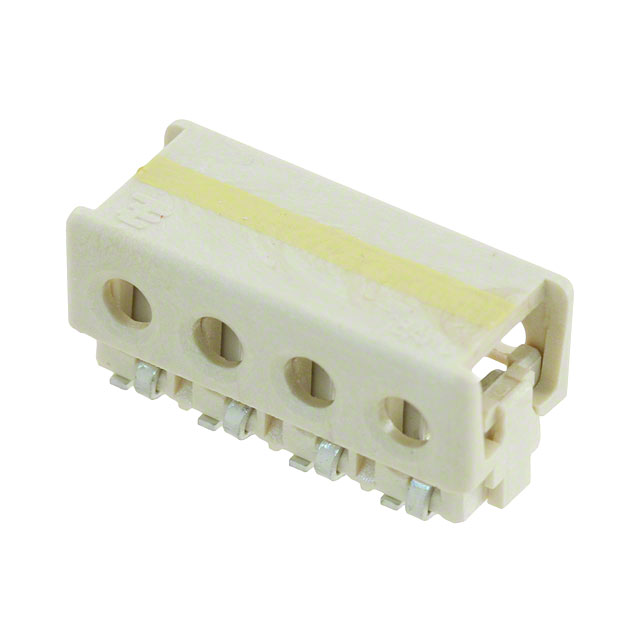

| Part Number | 2106431-4 | 2106431-1 | 2106431-2 | 2106431-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Individual Wires | Individual Wires | Individual Wires | Individual Wires |
| Number of Positions | 4 | 1 | 2 | 3 |
| Cable Pitch | 0.157" (4.00mm) | - | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Board-Side Pitch | 0.157" (4.00mm) | - | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Cable Termination | IDC | IDC | IDC | IDC |
| Wire Gauge | 18 AWG | 18 AWG | 18 AWG | 18 AWG |
| Features | Feed Through | Feed Through | Feed Through | Feed Through |
| Contact Finish | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | - | - | - | - |
| Color | Natural | Natural | Natural | Natural |
