Please send RFQ , we will respond immediately.

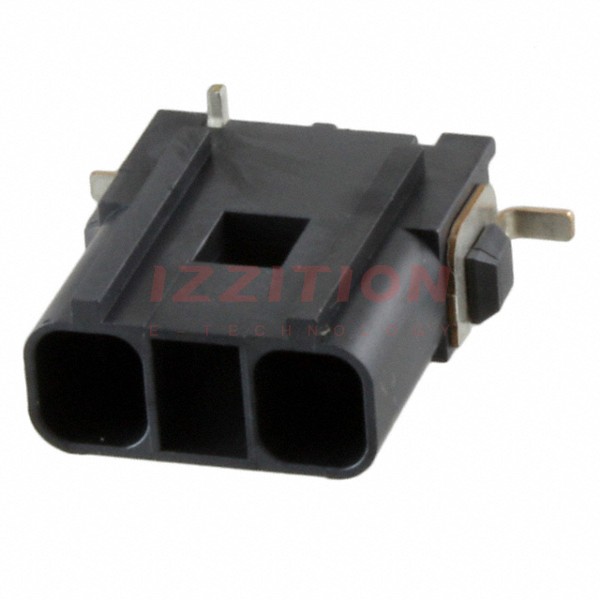

| Part Number | 2106053-2 | 2106053-6 | 2106053-4 | 2106056-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Connector Type | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins |
| Number of Positions | 2 | 4 | 3 | 2 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Right Angle |
| Termination | Solder | Solder | Solder | Solder |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Features | Solder Retention | Solder Retention | Solder Retention | Solder Retention |
| Housing Color | Black | Black | Black | Black |
| Wire Gauge | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
