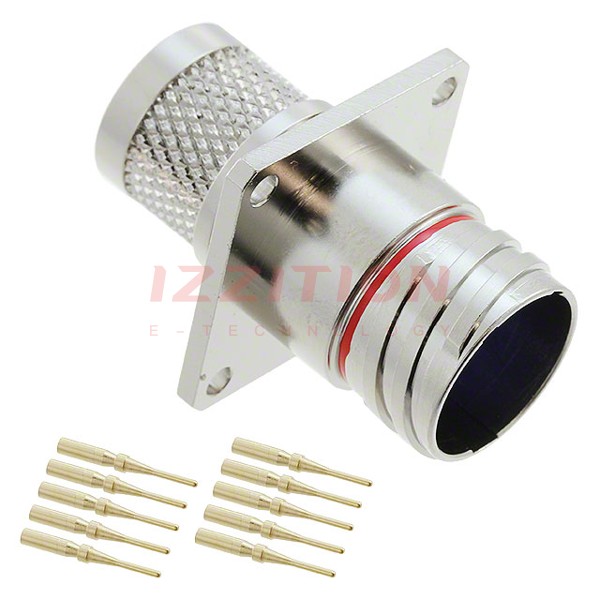

| Part Number | 2102343-1 | 2102353-1 | 2102343-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle, Male Pins | Plug, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 8 | 8 | 8 |
| Shell Size - Insert | 8 | 8 | 8 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | Flange | - | Flange |
| Termination | Crimp | Solder | Crimp |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | N (Normal) | N (Normal) | N (Normal) |
| Primary Material | Metal | Metal | Metal |
| Shell Material | Aluminum Alloy | Aluminum | Aluminum |
| Shell Finish | Nickel | Electroless Nickel | Black Zinc Nickel |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Silver | - | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - |
| Features | - | Backshell | - |
| Shielding | Shielded | Shielded | Shielded |
| Current Rating (Amps) | 5A | 5A | 5A |
| Voltage Rating | 500VAC | 500VAC | 500VAC |
| Cable Opening | - | - | - |
| Operating Temperature | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C |
