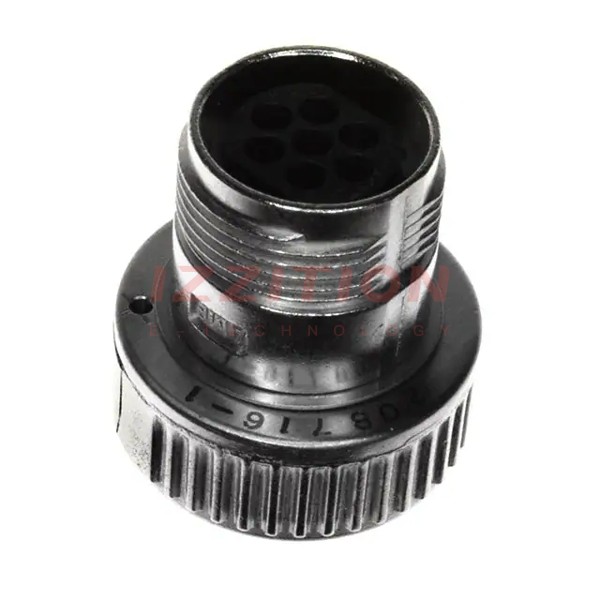

| Part Number | 208716-1 | 208719-1 | 208718-1 | 208717-1 | 208716-2 | 208714-1 | 208715-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Plug Housing | Plug Housing | Receptacle Housing |
| Type | For Male Pins | For Male Pins | For Female Sockets | For Female Sockets | For Male Pins | For Female Sockets | For Male Pins |
| Number of Positions | 7 | 5 | 5 | 7 | 7 | 7 | 7 |
| Shell Size - Insert | 14-7 | 14-5 | 14-5 | 14-7 | 14-7 | 14-7 | 14-7 |
| Shell Size, MIL | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | - | Flange | - | Flange | - | - | Flange |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - | - | - |
| Shell Material | Zinc | Zinc | Zinc | Zinc | Zinc | Zinc Alloy | Zinc |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | Environment Resistant | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Coupling Nut | - | Coupling Nut | - | Coupling Nut | Coupling Nut | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
