Please send RFQ , we will respond immediately.

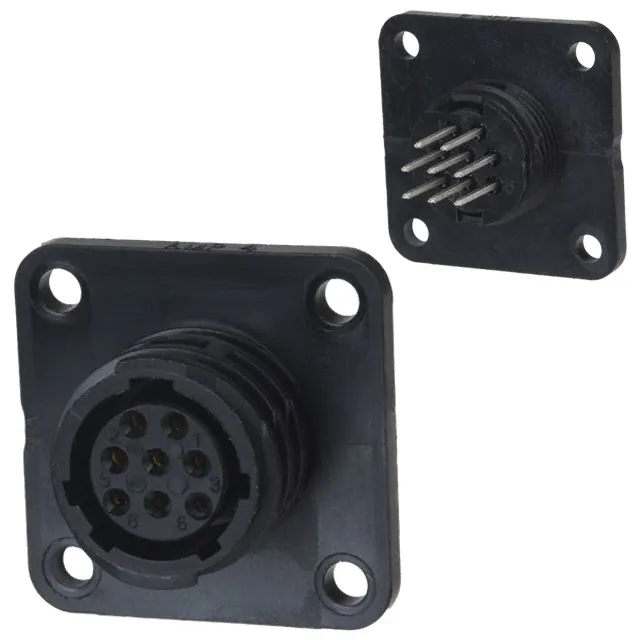

| Part Number | 208657-5 | 208657-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 8 | 8 |
| Shell Size - Insert | 11-8 | 11-8 |
| Shell Size, MIL | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole |
| Mounting Feature | Flange | Flange |
| Termination | Solder | Solder |
| Fastening Type | Threaded | Threaded |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Shell Finish | - | - |
| Contact Finish - Mating | Gold | Gold |
| Color | Black | Black |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | - | - |
| Shielding | - | - |
| Current Rating (Amps) | 7.5A | 7.5A |
| Voltage Rating | 250V | 250V |
| Cable Opening | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
