Please send RFQ , we will respond immediately.

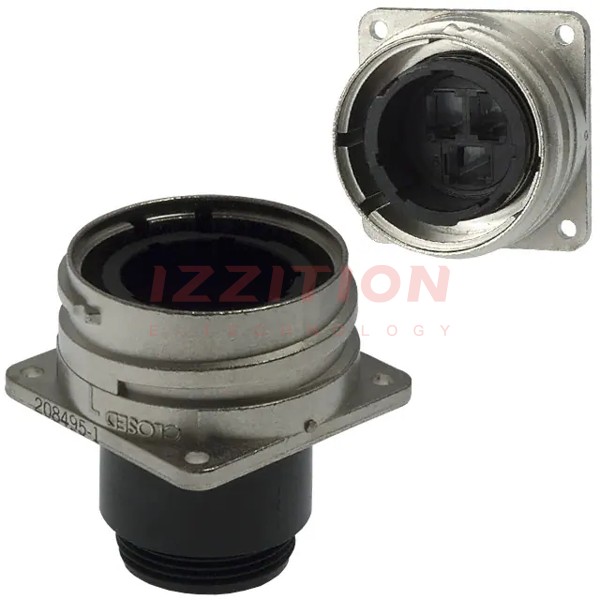

| Part Number | 208495-1 | 208496-1 | 208497-1 | 208475-1 | 208485-1 | 208490-1 | 208491-1 | 208492-1 | 208493-1 | 208494-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle Housing | Plug Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Plug Housing |
| Type | For Male Pins | For Male Pins | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Male Pins | For Male Pins | For Female Sockets | For Female Sockets |
| Number of Positions | 3 (Power) | 3 (Power) | 3 (Power) | 57 | 7 (Power) | 28 | 28 | 28 | 28 | 3 (Power) |
| Shell Size - Insert | 22-3 | 22-3 | 22-3 | 28-57 | 28-7 | 22-28 | 22-28 | 22-28 | 22-28 | 22-3 |
| Shell Size, MIL | - | - | - | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | - | - | - | 20 | - | 20 | 20 | 20 | 20 | - |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | - | Flange | Flange | Flange | - | Flange | - | Flange | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - | - | - | - | - | - |
| Shell Material | Zinc | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | Coupling Nut | - | - | - | Coupling Nut | - | Coupling Nut | - | Coupling Nut |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
