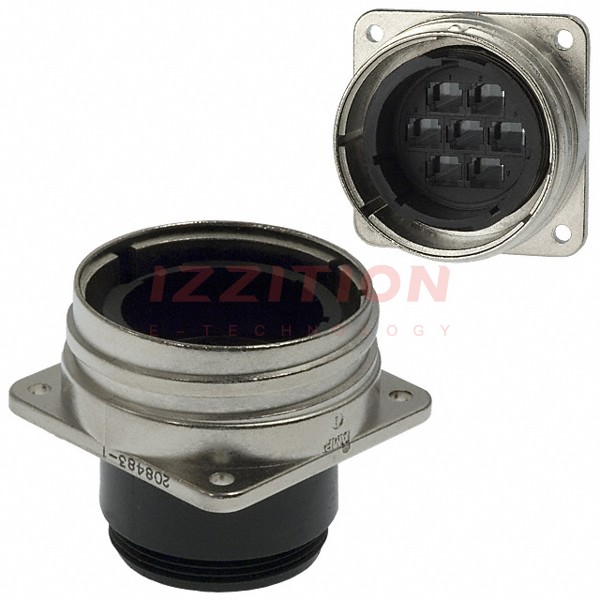

| Part Number | 208483-1 | 208489-1 | 208488-1 | 208486-1 | 208493-1 | 208484-1 | 208485-1 | 208487-1 | 208473-1 | 208480-1 | 208481-1 | 208482-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Plug Housing | Plug Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Plug Housing |
| Type | For Male Pins | For Male Pins | For Female Sockets | For Male Pins | For Female Sockets | For Male Pins | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Male Pins | For Female Sockets |
| Number of Positions | 7 (Power) | 16 | 16 | 14 | 28 | 7 (Power) | 7 (Power) | 14 | 37 | 22 (20 + 2 Power) | 22 (20 + 2 Power) | 7 (Power) |
| Shell Size - Insert | 28-7 | 22-16 | 22-16 | 22-14 | 22-28 | 28-7 | 28-7 | 22-14 | 28-37 | 28-22M | 28-22M | 28-7 |
| Shell Size, MIL | - | - | - | - | - | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | - | 16 | 16 | 16 | 20 | - | - | 16 | 16 | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | Flange | - | - | Flange | - | Flange | Flange | Flange | - | Flange | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - | - | - | - | - | - | - | - |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | Coupling Nut | Coupling Nut | - | Coupling Nut | - | - | - | Coupling Nut | - | Coupling Nut |
| Shielding | Shielded | Unshielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
