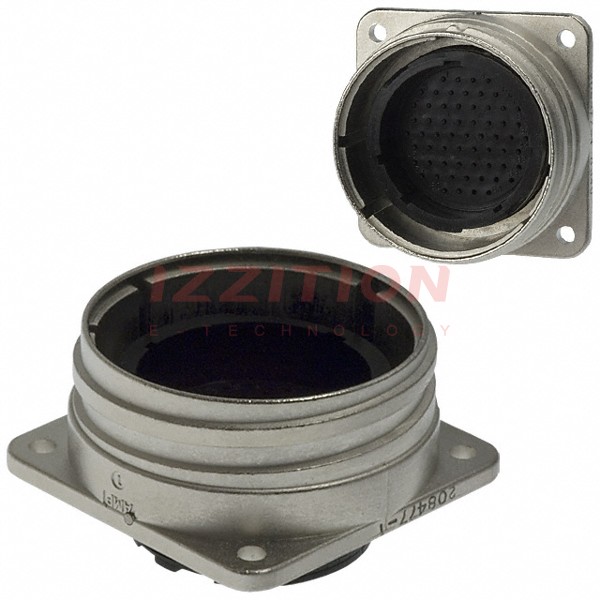

| Part Number | 208477-1 | 208478-1 | 208497-1 | 208487-1 | 208479-1 | 208677-1 | 208457-1 | 208470-1 | 208471-1 | 208472-1 | 208473-1 | 208474-1 | 208475-1 | 208476-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active |
| Connector Type | Receptacle Housing | Plug Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Plug Housing | Plug Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Plug Housing |
| Type | For Male Pins | For Female Sockets | For Female Sockets | For Female Sockets | For Male Pins | For Male Pins | For Female Sockets | For Female Sockets | For Male Pins | For Male Pins | For Female Sockets | For Male Pins | For Female Sockets | For Female Sockets |
| Number of Positions | 63 | 16 (12 + 4 Power) | 3 (Power) | 14 | 16 (12 + 4 Power) | 8 | 24 | 37 | 37 | 37 | 37 | 57 | 57 | 63 |
| Shell Size - Insert | 28-63 | 28-16M | 22-3 | 22-14 | 28-16M | 17-8 | 28-24 | 28-37 | 28-37 | 28-37 | 28-37 | 28-57 | 28-57 | 28-63 |
| Shell Size, MIL | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 20 | - | - | 16 | - | 16 | 16 | 16 | 16 | 16 | 16 | 20 | 20 | 20 |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | - | Flange | Flange | Flange | Flange | - | - | Flange | - | Flange | - | Flange | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Detent Lock | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Thermoplastic | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Aluminum Alloy | Zinc Alloy | Aluminum Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | - | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Black | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-2 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | Coupling Nut | - | - | - | - | Coupling Nut | Coupling Nut | - | Coupling Nut | - | Coupling Nut | - | Coupling Nut |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Unshielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
