Please send RFQ , we will respond immediately.

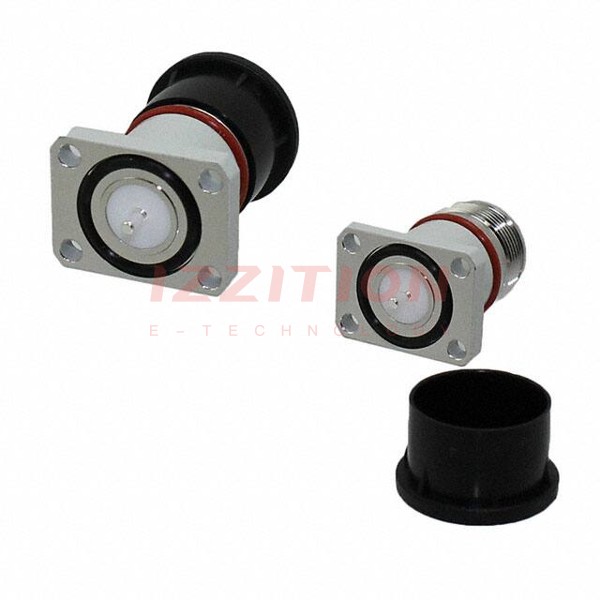

| Part Number | 2081977-1 | 2081937-1 | 2081967-1 | 2081970-1 | 2081971-1 | 2081972-1 | 2081973-1 | 2081974-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | 4.3/10 | 1.85mm | 4.3/10 | 4.3/10 | 4.3/10 | 4.3/10 | 4.3/10 | 4.3/10 |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Compression | Solder | Crimp or Solder | Crimp or Solder | Crimp or Solder | Solder | Solder |
| Shield Termination | Solder | Screw | Solder | Clamp | Clamp | Clamp | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Surface Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Mounting Feature | Flange | Flange | - | - | - | - | Flange | Flange |
| Cable Group | - | - | 1/2" Super Flex Coaxial | 1/2" Super Flex Coaxial | 1/2" Super Flex Coaxial | 7/8" Super Flex Coaxial | RG-141 | RG-380 |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 6 GHz | 67 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - | - |
| Housing Color | Silver | - | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Center Contact Material | Bronze | Beryllium Copper | Brass | Bronze | Bronze | Bronze | Bronze | Bronze |
