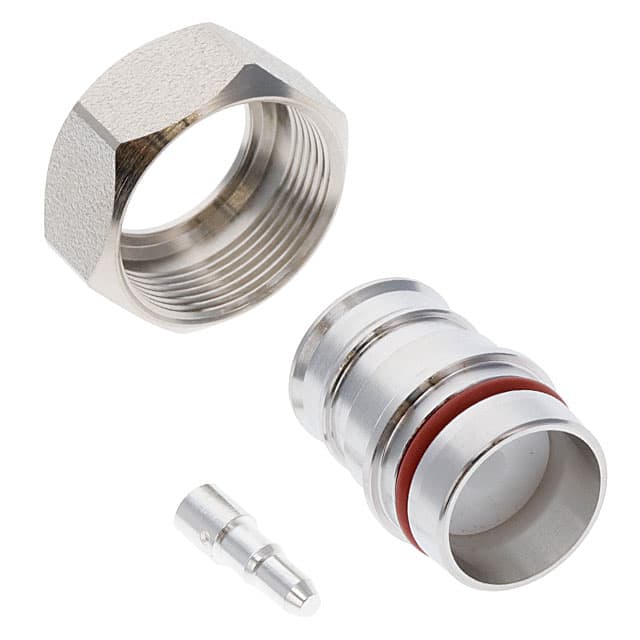

| Part Number | 2081967-1 | 2081969-1 | 2081977-1 | 2081968-1 | 2081937-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Connector Style | 4.3/10 | 4.3/10 | 4.3/10 | 4.3/10 | 1.85mm |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder | Solder | Compression |
| Shield Termination | Solder | Solder | Solder | Solder | Screw |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Panel Mount | Free Hanging (In-Line) | Surface Mount |
| Mounting Feature | - | - | Flange | - | Flange |
| Cable Group | 1/2" Super Flex Coaxial | 1/2" Super Flex Coaxial | - | 1/2" Super Flex Coaxial | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 67 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | - |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Bronze | Brass | Beryllium Copper |
