Please send RFQ , we will respond immediately.

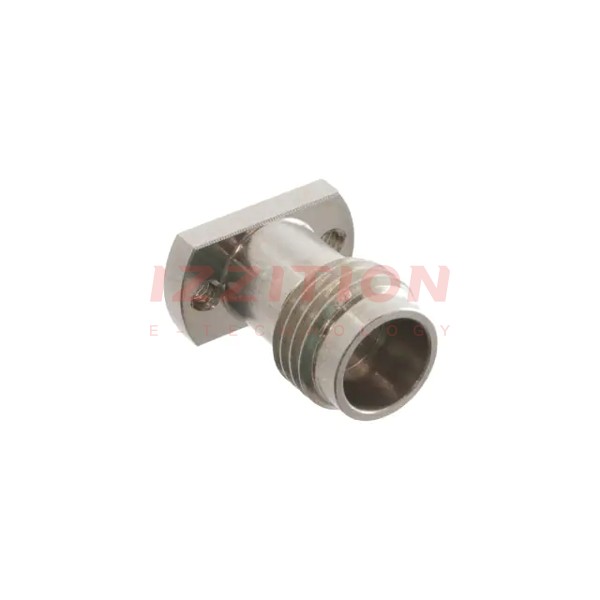

| Part Number | 2081937-1 | 2081967-1 | 2081977-1 | 2081934-1 | 2081935-1 | 2081936-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Obsolete | Active | Active | Active |
| Connector Style | 1.85mm | 4.3/10 | 4.3/10 | 2.92mm | 2.4mm (APC-2.4, OS-50) | 2.4mm (APC-2.4, OS-50) |
| Connector Type | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Compression | Solder | Solder | Solder | Solder | Compression |
| Shield Termination | Screw | Solder | Solder | Solder | Screw | Screw |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Surface Mount | Free Hanging (In-Line) | Panel Mount | Board Edge, Cutout; Surface Mount | Through Hole | Surface Mount |
| Mounting Feature | Flange | - | Flange | - | Flange | Flange |
| Cable Group | - | 1/2" Super Flex Coaxial | - | - | - | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 67 GHz | 6 GHz | 6 GHz | 40 GHz | 50 GHz | 50 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | Extended Insulation | - |
| Housing Color | - | Silver | Silver | Gold | - | - |
| Ingress Protection | - | - | - | - | - | - |
| Center Contact Material | Beryllium Copper | Brass | Bronze | Beryllium Copper | Beryllium Copper | Beryllium Copper |
