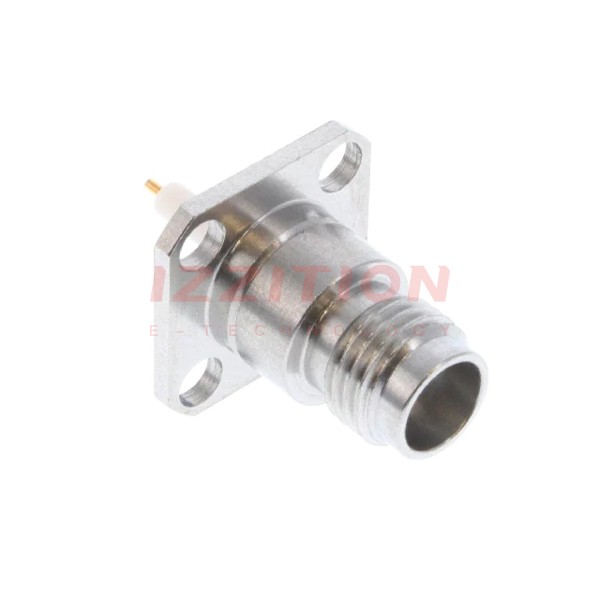

| Part Number | 2081935-1 | 2081937-1 | 2081936-1 | 2081934-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Style | 2.4mm (APC-2.4, OS-50) | 1.85mm | 2.4mm (APC-2.4, OS-50) | 2.92mm |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Compression | Compression | Solder |
| Shield Termination | Screw | Screw | Screw | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Board Edge, Cutout; Surface Mount |
| Mounting Feature | Flange | Flange | Flange | - |
| Cable Group | - | - | - | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 50 GHz | 67 GHz | 50 GHz | 40 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | Extended Insulation | - | - | - |
| Housing Color | - | - | - | Gold |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
