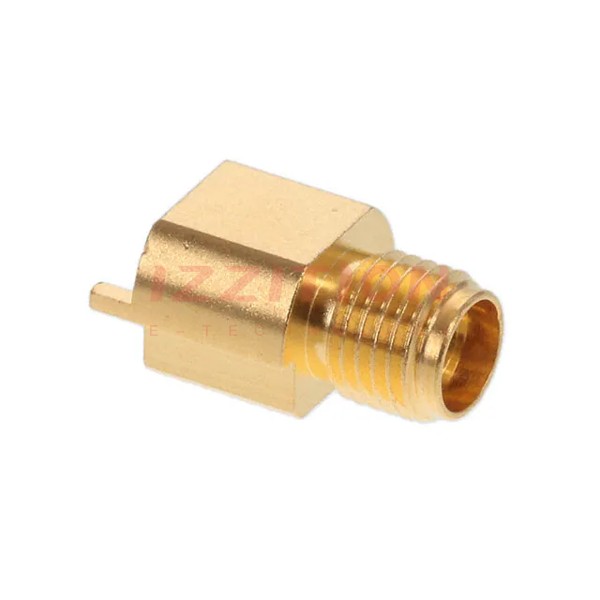

| Part Number | 2081934-1 | 2081937-1 | 2081935-1 | 2081936-1 | 2081974-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete |
| Connector Style | 2.92mm | 1.85mm | 2.4mm (APC-2.4, OS-50) | 2.4mm (APC-2.4, OS-50) | 4.3/10 |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Compression | Solder | Compression | Solder |
| Shield Termination | Solder | Screw | Screw | Screw | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Board Edge, Cutout; Surface Mount | Surface Mount | Through Hole | Surface Mount | Panel Mount |
| Mounting Feature | - | Flange | Flange | Flange | Flange |
| Cable Group | - | - | - | - | RG-380 |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 40 GHz | 67 GHz | 50 GHz | 50 GHz | 6 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | Extended Insulation | - | - |
| Housing Color | Gold | - | - | - | Silver |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | Bronze |
