Please send RFQ , we will respond immediately.

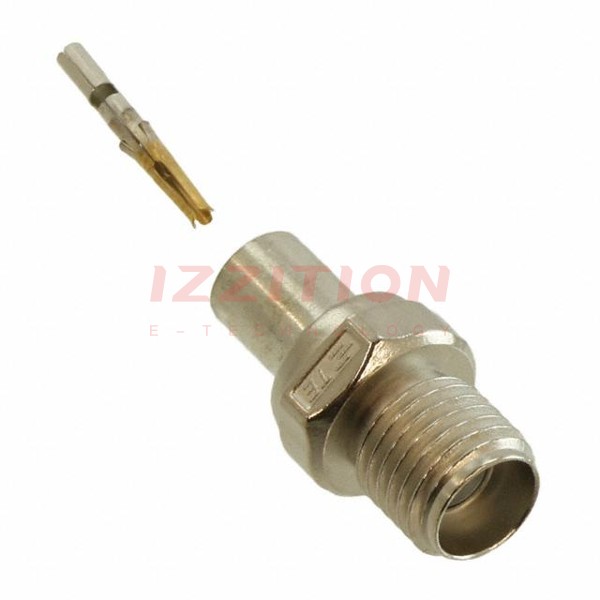

| Part Number | 2081205-1 | 2081205-7 | 2081205-9 | 2081005-1 | 2081201-1 | 2081202-1 | 2081203-1 | 2081204-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | SMA | SMA | SMA | SMA | SMA | SMA | SMA | SMA |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Shield Termination | Crimp | Crimp | Crimp | Solder | Solder | Crimp | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Board Edge, End Launch; Through Hole, Right Angle | Through Hole, Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Panel Mount |
| Mounting Feature | - | - | - | - | - | - | - | Bulkhead - Front Side Nut |
| Cable Group | RG-402 (.141" Semi Rigid) | RG-58, 141, 142, 223, 400 | RG-405 (.085" Semi Rigid) | - | - | RG-402 (.141" Semi Rigid) | RG-402 (.141" Semi Rigid) | RG-402 (.141" Semi Rigid) |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 18 GHz | 18 GHz | 18 GHz | - | 18 GHz | 18 GHz | 18 GHz | 18 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Center Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Beryllium Copper | - | Copper Alloy | Copper Alloy | Copper Alloy |
