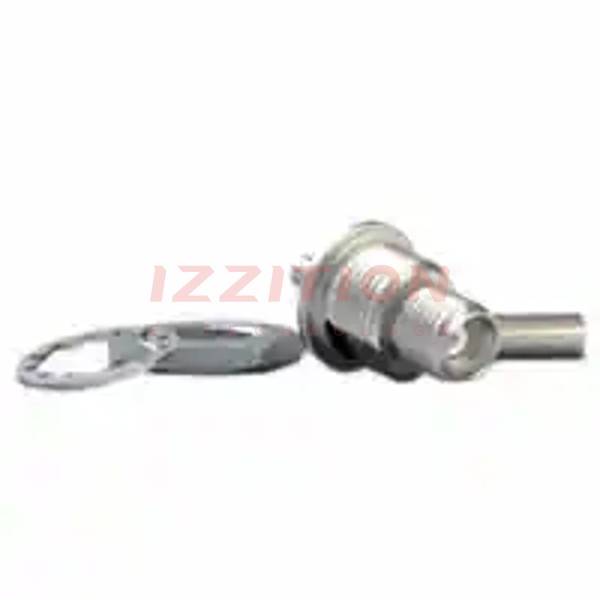

| Part Number | 2081204-5 | 2081204-9 | 2081202-5 | 2081203-5 | 2081204-1 | 2081204-3 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | SMA | SMA | SMA | SMA | SMA | SMA |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Shield Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | - | - | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Cable Group | RD-316 | RG-405 (.085" Semi Rigid) | RD-316 | RD-316 | RG-402 (.141" Semi Rigid) | RG-174, 188, 316 |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 18 GHz | 18 GHz | 18 GHz | 18 GHz | 18 GHz | 18 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - |
| Center Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
