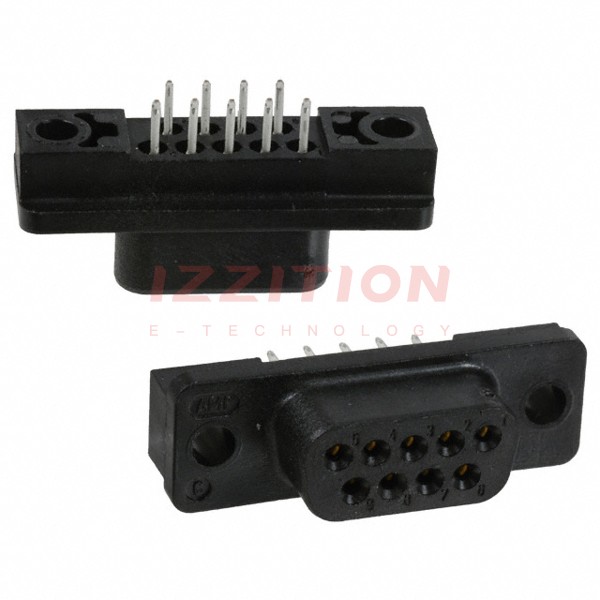

| Part Number | 207826-3 | 207828-3 | 207826-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 9 | 25 | 9 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Shell Size, Connector Layout | 1 (DE, E) | 3 (DB, B) | 1 (DE, E) |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Termination | Solder | Solder | Solder |
| Primary Material | - | - | - |
| Shell Material, Finish | - | - | - |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | Flash | Flash | 30.0µin (0.76µm) |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 6A | 6A | 6A |
| Backset Spacing | - | - | - |
| Features | - | - | - |
