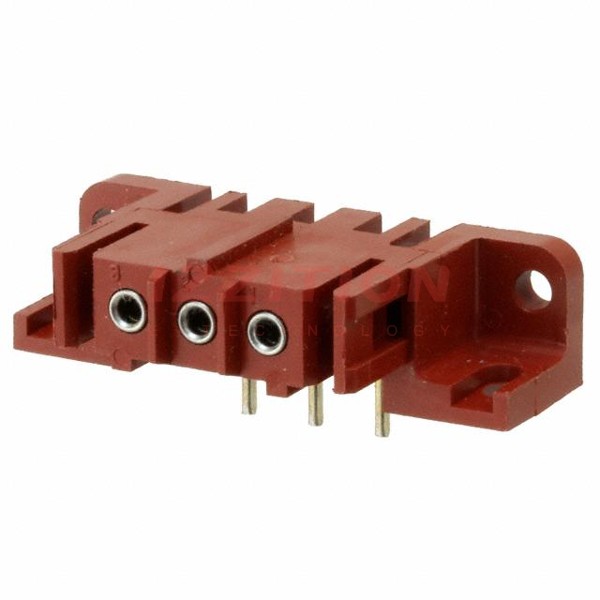

| Part Number | 207608-1 | 207608-7 | 207608-6 | 207608-3 | 207609-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete |
| Connector Type | Header | Header | Header | Header | Header |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 3 | 3 | 3 | 3 | 3 |
| Number of Positions Loaded | All | All | All | All | All |
| Pitch - Mating | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder |
| Contact Finish - Mating | Tin-Lead | Gold | Tin | Gold | Tin-Lead |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | 30.0µin (0.76µm) | 150.0µin (3.81µm) | 30.0µin (0.76µm) | 150.0µin (3.81µm) |
| Insulation Color | Red | Red | Red | Red | Black, Red |
| Insulation Height | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.768" (19.50mm) |
| Contact Length - Post | 0.186" (4.72mm) | 0.186" (4.72mm) | 0.186" (4.72mm) | 0.186" (4.72mm) | 0.186" (4.72mm) |
| Operating Temperature | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin-Lead | Tin | Tin | Tin-Lead | Tin-Lead |
| Mated Stacking Heights | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - |
| Features | Mounting Flange | Mounting Flange | Mounting Flange | Mounting Flange | Mounting Flange |
| Current Rating (Amps) | 7.5A | 7.5A | 7.5A | 7.5A | 7.5A |
| Voltage Rating | 600V | 600V | 600V | 600V | 600V |
