Please send RFQ , we will respond immediately.

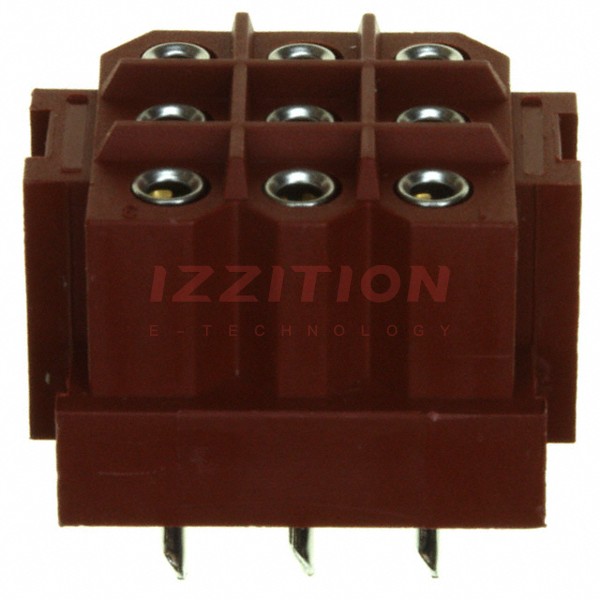

| Part Number | 207526-4 | 207526-9 | 207526-7 | 207526-8 | 207528-4 | 207524-4 | 207526-1 | 207526-2 | 207526-3 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete |
| Connector Type | Header | Header | Header | Header | Header | Header | Header | Header | Header |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 9 | 9 | 9 | 9 | 12 | 6 | 9 | 9 | 9 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All |
| Pitch - Mating | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Rows | 3 | 3 | 3 | 3 | 3 | 2 | 3 | 3 | 3 |
| Row Spacing - Mating | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder |
| Contact Finish - Mating | Gold | Gold | Tin | Tin | Gold | Gold | Tin-Lead | Tin-Lead | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 150.0µin (3.81µm) | 150.0µin (3.81µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 150.0µin (3.81µm) | 150.0µin (3.81µm) | 30.0µin (0.76µm) |
| Insulation Color | Red | Red | Red | Red | Black, Red | Black, Red | Red | Red | Red |
| Insulation Height | 0.565" (14.35mm) | 0.565" (14.35mm) | 0.565" (14.35mm) | 0.565" (14.35mm) | 0.565" (14.35mm) | 0.565" (14.35mm) | 0.565" (14.35mm) | 0.565" (14.35mm) | 0.565" (14.35mm) |
| Contact Length - Post | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) |
| Operating Temperature | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin-Lead | Tin | Tin | Tin | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
| Mated Stacking Heights | - | - | - | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - | - | - | - |
| Features | - | Mounting Flange | Mounting Flange | - | - | - | Mounting Flange | - | Mounting Flange |
| Current Rating (Amps) | 7.5A | 7.5A | 7.5A | 7.5A | 7.5A | 7.5A | 7.5A | 7.5A | 7.5A |
| Voltage Rating | 600V | 600V | 600V | 600V | 600V | 600V | 600V | 600V | 600V |
