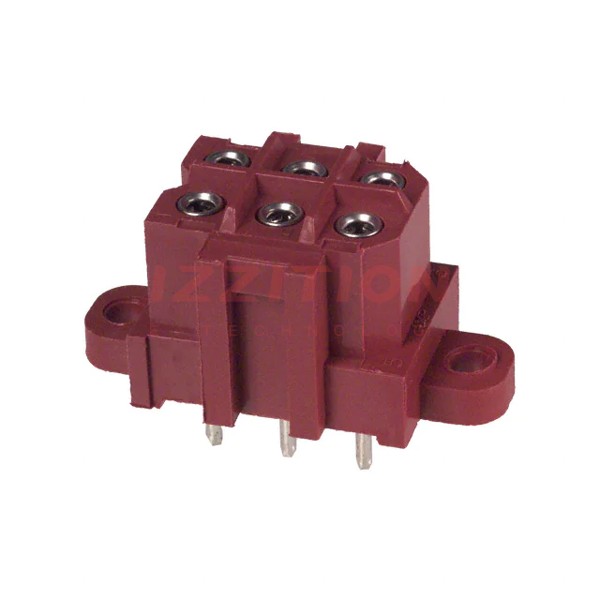

TE Connectivity AMP Connectors 207524-1

Manufacturer No:
207524-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
207524-1 Datasheet
ECAD Model:
-
Description:
CONN HDR 6POS 0.197 TIN-LEAD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Female Socket
Style:Board to Cable/Wire
Number of Positions:6
Number of Positions Loaded:All
Pitch - Mating:0.197" (5.00mm)
Number of Rows:2
Row Spacing - Mating:0.197" (5.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:150.0µin (3.81µm)
Insulation Color:Black, Red
Insulation Height:0.565" (14.35mm)
Contact Length - Post:0.181" (4.60mm)
Operating Temperature:-55°C ~ 130°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:Mounting Flange
Current Rating (Amps):7.5A
Voltage Rating:600V
