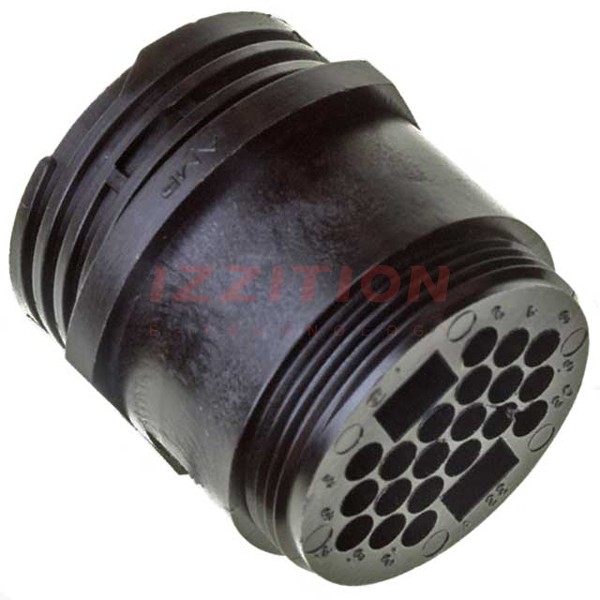

| Part Number | 206613-3 | 206613-5 | 206613-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing |
| Type | For Male Pins | For Male Pins | For Male Pins |
| Number of Positions | 22 (20 + 2 Power) | 22 (20 + 2 Power) | 22 (20 + 2 Power) |
| Shell Size - Insert | 23-22M | 23-22M | 23-22M |
| Shell Size, MIL | - | - | - |
| Contact Type | Crimp | Crimp | Crimp |
| Contact Size | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Mounting Feature | - | Flange | Flange |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | - | - | - |
| Shell Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Shell Finish | - | - | - |
| Housing Color | Black | Black | Black |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
