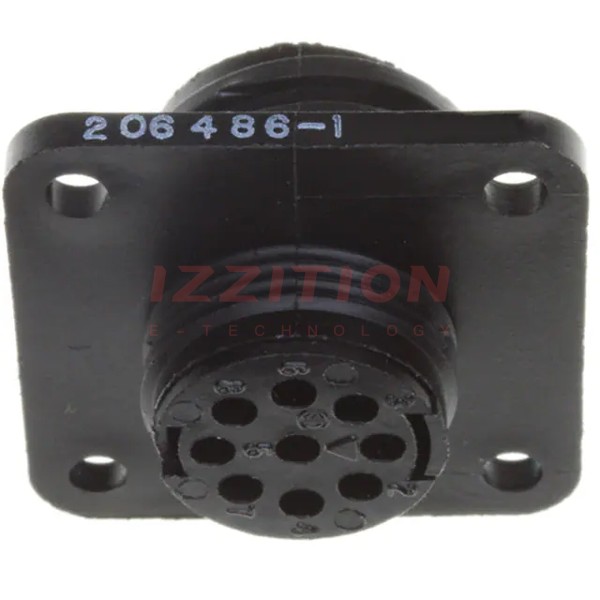

| Part Number | 206486-1 | 207486-1 | 206486-2 | 208486-1 | 206426-1 | 206485-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing | Plug Housing | Plug Housing | Plug Housing |
| Type | For Male Pins | For Male Pins | For Male Pins | For Male Pins | For Male Pins | For Female Sockets |
| Number of Positions | 9 | 16 (12 + 4 Power) | 9 | 14 | 3 (Power) | 9 |
| Shell Size - Insert | 11-9 | 23-16M | 11-9 | 22-14 | 17-3 | 11-9 |
| Shell Size, MIL | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 20 | - | 20 | 16 | - | 20 |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | Flange | Flange | - | - | - | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | A | Keyed |
| Primary Material | - | - | - | - | - | - |
| Shell Material | Thermoplastic | Polyamide (PA), Nylon | Thermoplastic | Zinc Alloy | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Finish | - | - | - | Nickel | - | - |
| Housing Color | Black | Black | Black | Silver | Black | Black |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | Coupling Nut | Coupling Nut | Coupling Nut |
| Shielding | Unshielded | Unshielded | Unshielded | Shielded | Unshielded | Unshielded |
