Please send RFQ , we will respond immediately.

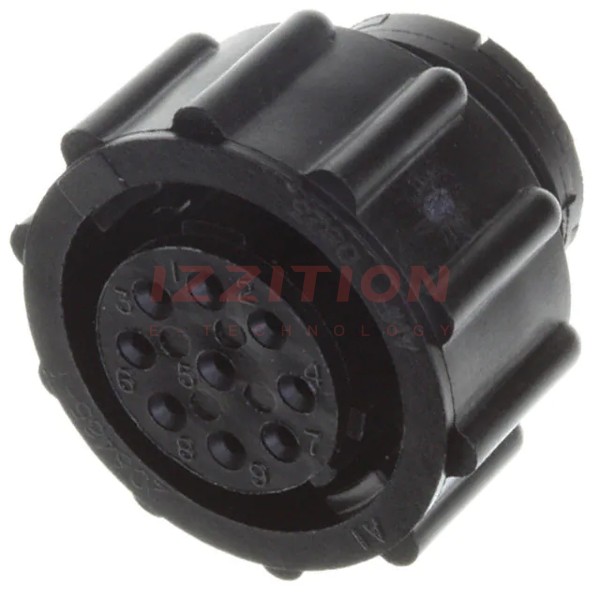

| Part Number | 206485-1 | 206486-1 | 207485-1 | 208485-1 | 206425-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Plug Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Receptacle Housing |
| Type | For Female Sockets | For Male Pins | For Female Sockets | For Female Sockets | For Female Sockets |
| Number of Positions | 9 | 9 | 16 (12 + 4 Power) | 7 (Power) | 3 (Power) |
| Shell Size - Insert | 11-9 | 11-9 | 23-16M | 28-7 | 17-3 |
| Shell Size, MIL | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 20 | 20 | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Mounting Feature | - | Flange | - | Flange | Flange |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Thermoplastic | Polyamide (PA66), Nylon 6/6, Glass Filled | Zinc Alloy | Polyamide (PA), Nylon |
| Shell Finish | - | - | - | Nickel | - |
| Housing Color | Black | Black | Black | Silver | Black |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Coupling Nut | - | Coupling Nut | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Shielded | Unshielded |
