Please send RFQ , we will respond immediately.

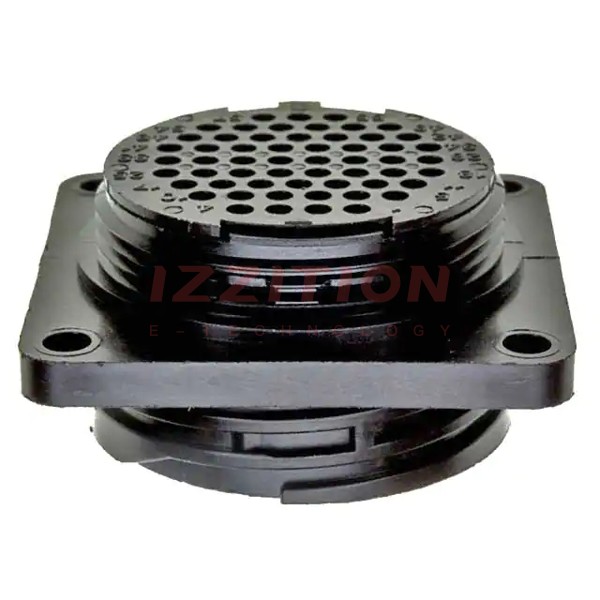

| Part Number | 206438-1 | 206838-1 | 206438-2 | 206438-3 | 206038-1 | 206430-1 | 206433-1 | 206434-1 | 206437-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Plug Housing | Plug Housing |
| Type | For Female Sockets | For Male Pins | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Male Pins | For Male Pins |
| Number of Positions | 57 | 24 | 57 | 57 | 28 | 4 | 8 | 8 | 57 |
| Shell Size - Insert | 23-57 | 23-24 | 23-57 | 23-57 | 17-28 | 11-4 | 11-8 | 11-8 | 23-57 |
| Shell Size, MIL | - | - | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 20 | 16 | 20 | 20 | 20 | 16 | 20 | 20 | 20 |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | Flange | Flange | - | Flange | Flange | Flange | Flange | - | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | A | Keyed | Keyed | Keyed | A | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - | - | - | - | - |
| Shell Material | Thermoplastic | Polyamide (PA), Nylon | Thermoplastic | Thermoplastic | Thermoplastic | Polyamide (PA), Nylon | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Finish | - | - | - | - | - | - | - | - | - |
| Housing Color | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Ingress Protection | - | - | - | Environment Resistant | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | - | - | - | Coupling Nut | Coupling Nut |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
