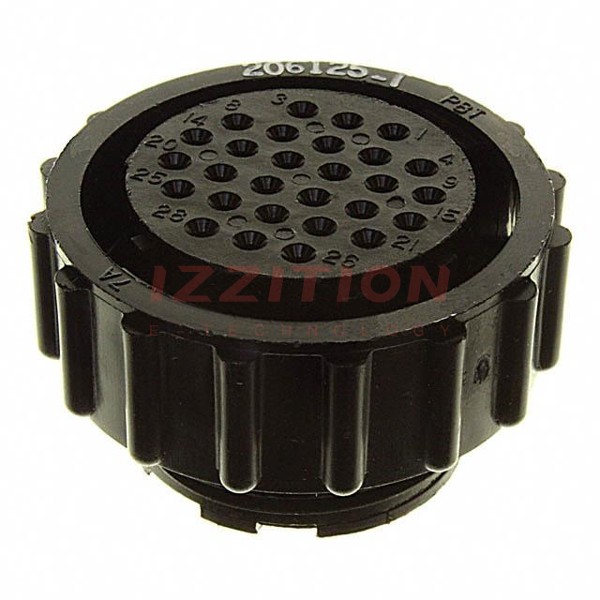

| Part Number | 206125-1 | 206425-1 | 206126-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Plug Housing | Receptacle Housing | Plug Housing |
| Type | For Female Sockets | For Female Sockets | For Female Sockets |
| Number of Positions | 28 | 3 (Power) | 28 |
| Shell Size - Insert | 17-28 | 17-3 | 17-28 |
| Shell Size, MIL | - | - | - |
| Contact Type | Crimp | Crimp | Crimp |
| Contact Size | 20 | - | 20 |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | - | Flange | - |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | - | - | - |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA), Nylon | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Finish | - | - | - |
| Housing Color | Black | Black | Black |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Coupling Nut | - | Coupling Nut |
| Shielding | Unshielded | Unshielded | Unshielded |
