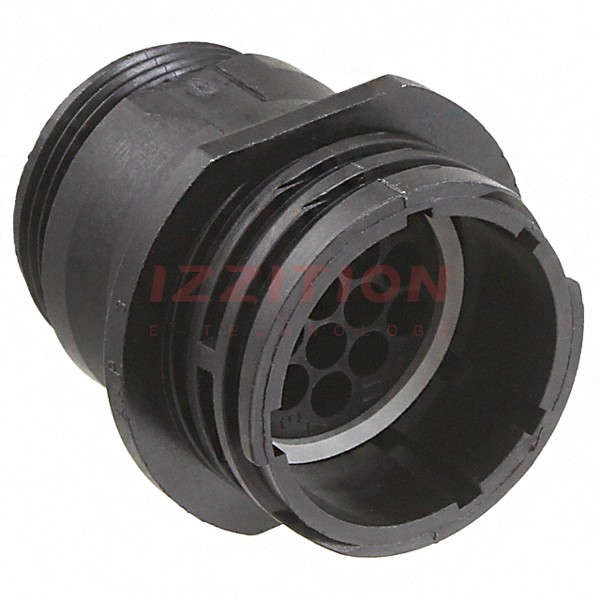

| Part Number | 206036-5 | 206036-8 | 206036-7 | 206036-1 | 206036-2 | 206036-3 | 206036-4 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing |
| Type | For Male Pins | For Male Pins | For Male Pins | For Male Pins | For Male Pins | For Male Pins | For Male Pins |
| Number of Positions | 16 | 16 | 16 | 16 | 3 (Power) | 16 | 16 |
| Shell Size - Insert | 17-16 | 17-16 | 17-16 | 17-16 | 17-3 | 17-16 | 17-16 |
| Shell Size, MIL | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 16 | 16 | 16 | 16 | - | 16 | 16 |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | - | Flange | Flange | Flange | Flange | - | Flange |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | A | A | A | A | A | A | A |
| Primary Material | - | - | - | - | - | - | - |
| Shell Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Shell Finish | - | - | - | - | - | - | - |
| Housing Color | Black | Black | Black | Black | Black | Black | Black |
| Ingress Protection | Environment Resistant | - | - | - | - | - | Environment Resistant |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
